Belt alignment tools TKBA 10 and TKBA 20

Versatile tools for pulley and sprocket alignment

SKF Belt Alignment Tools TKBA 10 and TKBA 20

The SKF TKBA 10 and TKBA 20 allow pulleys and sprockets to be aligned on the side face. The unit magnetically attaches to the inside or outside face of almost any belt pulley or chain sprocket and has no small parts or targets that can get lost. A laser line is projected from the transmitter unit to the reflector unit mounted on the opposite pulley. A reference line on the reflector unit directly indicates the offset and vertical angle misalignment. The reflected laser line shown on the transmitter unit shows the horizontal angle misalignment of all three.

Features and benefits

  • Powerful magnets allow fast and easy attachment
  • Facilitates simultaneous adjustment of tension and alignment
  • Can be used on almost all machines using V belts, banded belts, ribbed belts and most other belts as well as chain sprockets
  • SKF TKBA 10 utilises a red laser and can be used for distances up to 3 m (10 ft)
  • SKF TKBA 20 utilises a highly visible green laser and can be used for distances up to 6 m (20 ft). It can even be used outdoors in sunny conditions
  • Sturdy aluminium housings help ensure assembly stability and accuracy during the alignment process

SKF TKBA 10 (fig 1)
Utilises a red laser and can be used for distances up to 3 m (10 ft).

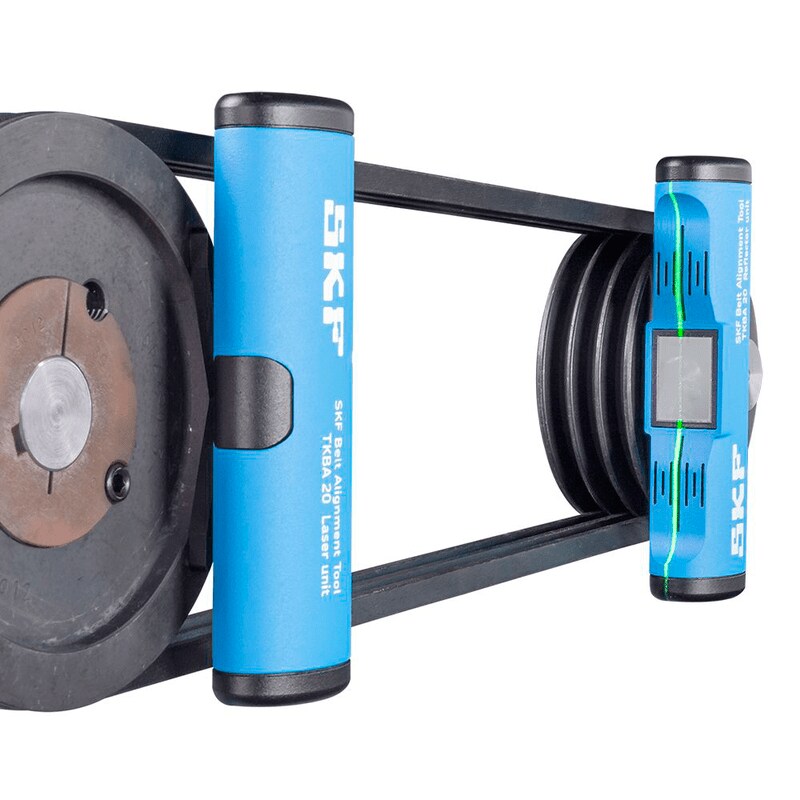

SKF TKBA 20 (fig 2)
Utilises a highly visible green laser and can be used for distances up to 6 m
(20 ft). It can even be used outdoors in sunny conditions.

SKF TKBA 10 (fig 3)
Belt alignment tool TKBA 10 in carrying case.

SKF TKBA 20 (fig 4)
Belt alignment tool TKBA 20 in carrying case.
Technical data
Designation
TKBA 10
Type of laser
Red laser diode
Laser
1x Built-in class 2 laser, <1 mW, 635 nm
Laser line length
2 m at 2 m (6.6 ft at 6.6 ft)
Measurement accuracy angular
Better than 0,02° at 2 m (6.6 ft)
Measurement accuracy offset
Better than 0,5 mm (0.02 in.)
Measurement distance
50 mm to 3 000 mm (2 in. to 10 ft)
Control
Laser on/off rocker switch
Housing material
Aluminum, powder coat finish
Dimensions

  Transmitter unit
169 x 51 x 37 mm (6.65 x 2.0 x 1.5 in.)
  Receiver unit
169 x 51 x 37 mm (6.5 x 2.0 x 1.5 in.)
  Reflector dimensions
22 x 32 mm (0.9 x 1.3 in.)
Weight

  Transmitter unit365 g (0.8 lbs)
  Receiver unit340 g (0.7 lbs)
MountingMagnetic, side mounted
V-guidesN/A
Battery2x AAA Alkaline type IEC LR03
Operation time25 hours continuous operation
Carrying case dimensions260 x 85 x 180 mm (10.3 x 3.4 x 7.0 in.)
Total weight (incl. case)1,3 kg (2.9 lbs)
Operating temperature0 to 40 °C (32 to 104 °F)
Storage temperature–20 to +60 °C (–4 to +140 °F)
Relative humidity10 to 90% RH non-condensing
IP ratingIP 40
Calibration certificateValid for two years
Case contents
1x TKBA 10 transmitter unit
1x TKBA 10 receiver unit
2x AAA batteries
1x Printed instructions for use
1x Calibration certificate
Technical data
Designation
TKBA 20
Type of laser
Green laser diode
Laser
1x Built-in class 2 laser, <1 mW, 532 nm
Laser line length
2 m at 2 m (6.6 ft at 6.6 ft)
Measurement accuracy angular
Better than 0,02° at 2 m (6.6 ft)
Measurement accuracy offset
Better than 0,5 mm (0.02 in.)
Measurement distance
50 mm to 6 000 mm (2 in. to 20 ft)
Control
Laser on/off rocker switch
Housing material
Aluminum, powder coat finish
Dimensions

Transmitter unit
169 x 51 x 37 mm (6.65 x 2.0 x 1.5 in.)
Receiver unit
169 x 51 x 37 mm (6.5 x 2.0 x 1.5 in.)
Reflector dimensions
22 x 32 mm (0.9 x 1.3 in.)
Weight

Transmitter unit365 g (0.8 lbs)
Receiver unit340 g (0.7 lbs)
MountingMagnetic, side mounted
V-guidesN/A
Battery2x AAA Alkaline type IEC LR03
Operation time8 hours continuous operation
Carrying case dimensions260 x 180 x 85 mm (10.2 x 7.1 x 3.3 in.)
Total weight (incl. case1,3 kg (2.9 lbs)
Operating temperature0 to 40 °C (32 to 104 °F)
Storage temperature–20 to +60 °C (–4 to +140 °F)
Relative humidity10 to 90% RH non-condensing
IP ratingIP 40
Calibration certificateValid for two years
Case contents
1x TKBA 20 transmitter unit
1x TKBA 20 receiver unit
2x AAA batteries
1x Printed instructions for use
1x Calibration certificate
