Cylindrical roller bearings
SKF cylindrical roller bearings are available in many designs, series and sizes. The majority are single row bearings with a cage. High-capacity bearings, double row bearings, multi-row bearings, single, double and multi-row full complement bearings (without a cage) and split bearings complete the SKF standard assortment provided here.
Bearings with a cage can accommodate heavy radial loads, rapid accelerations and high speeds. Full complement bearings incorporate a maximum number of rollers and are therefore suitable for very heavy radial loads at moderate speeds. SKF high-capacity cylindrical roller bearings combine the high load carrying capacity of a full complement bearing with the high speed capability of a bearing with a cage.
The factors that influence SKF cylindrical roller bearing performance and service life include but are not limited to the following:
Roller end / flange contact area
SKF cylindrical roller bearings have two integral flanges on either the inner or outer ring to guide the rollers. The bearings have “open” flanges, i.e. the inward face of the flange is inclined by a defined angle (fig. 1). The flange design, together with the roller end design and surface finish, promote the formation of a lubricant film to reduce friction and frictional heat.
Logarithmic roller profile
The roller profile determines the stress distribution in the roller/raceway contact area. As a result, the rollers in SKF cylindrical roller bearings have a logarithmic profile to distribute loads evenly along the rollers. This prevents stress peaks at the roller ends to extend bearing service life (fig. 2, fig. 3). The logarithmic profile also reduces sensitivity to misalignment and shaft deflection.
The surface finish on the contact surfaces of the rollers and raceways maximizes the formation of a hydrodynamic lubricant film and optimizes the rolling motion of the rollers. The benefits derived from this, compared with traditional designs, include enhanced operational reliability.
The separable components of same-sized SKF cylindrical roller bearings are interchangeable (fig. 4). Any bearing ring with a roller and cage assembly can be assembled with any removable ring of the same bearing type and size having the same internal clearance class. This is particularly important when bearings and their components must be mounted independently of each other.
AssortmentThe SKF assortment of standard cylindrical roller bearings comprises:

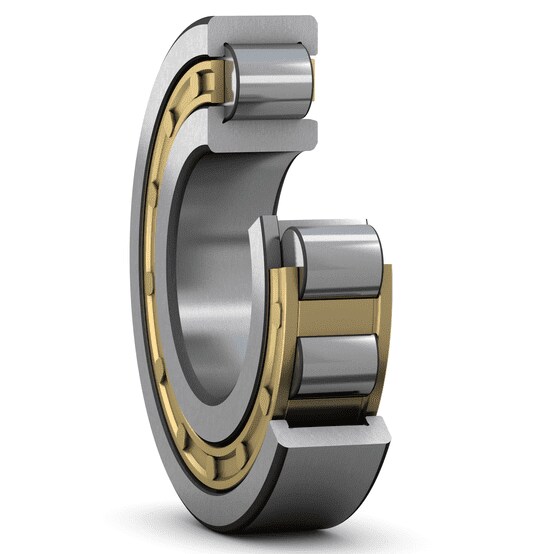

- single row cylindrical roller bearings, mainly of the NU, N, NJ and NUP designs (fig. 5, fig. 6, fig. 7, fig. 8)
high-capacity cylindrical roller bearings, NCF (fig. 9), NJF and NUH design
- double row cylindrical roller bearings, NNU (fig. 10), NN (fig. 11) and NNUP designs
- multi-row cylindrical roller bearings (fig. 12, fig. 13)
- single row full complement cylindrical roller bearings, NCF (fig. 14) and NJG designs (fig. 15)
- double row full complement cylindrical roller bearings, NNCL (fig. 16), NNCF, NNC and NNF designs (fig. 17)
- multi-row full complement cylindrical roller bearings, with four or eight rows of rollers (fig. 18)
- split cylindrical roller bearings (fig. 19, fig. 20)
In addition to the bearings presented in this section the comprehensive SKF assortment of cylindrical roller bearings includes:
- bearings with Solid Oil
- SKF DryLube bearings
- INSOCOAT bearings
- hybrid bearings
- NoWear coated bearings
- super-precision cylindrical roller bearings with steel rollers or hybrid bearings
- cylindrical roller bearings and bearing units for railway axleboxes (fig. 21, → contact SKF)
- cylindrical roller bearings for traction motors for railway applications (→ contact SKF)
- backing bearings for cluster mills
- indexing roller units for continuous furnaces
