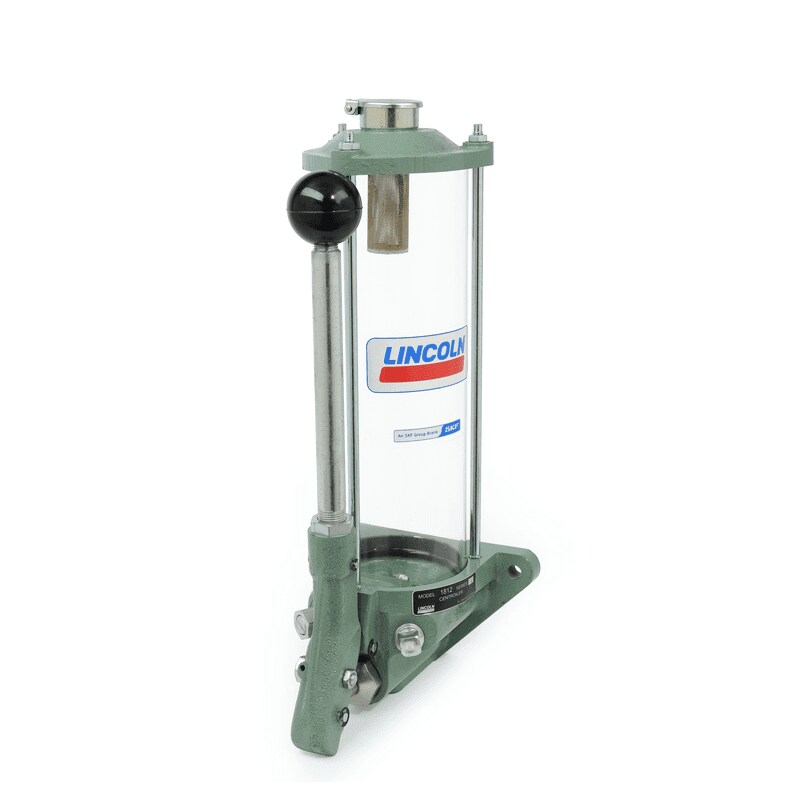

Manually operated pump for use with single-line lubrication systems
The 1812 pump features a translucent reservoir with filler cap and strainer. Its pump base has an integrated check/vent valve and an indicator pin to show when system pressure is achieved.
Features and benefits:
- Provides precise lubrication where air or electricity are not available
- Built-in vent valve activates when handle is pushed all the way up
- Pressure stem indicates 58 bar (850 psi)
Suitable for use with single-line metering devices
Function principle manually operated pump Outlets 1 Metering quantity 2,6 cm³/stroke 0.16 in³/stroke Lubricant oil, synthetic oil on request Operating temperature -23 to +65 °C -10 to +150 °F Operating pressure max. 70 bar 1000 psi Reservoir capacity 2,13 l; 2130 cm³ 0.5 gal; 130 in³ Material (reservoir) acrylic Connection outlet 1/4 NPTF (F) Dimensions 425 x 181 x 197 mm 16.75 x 7.125 x 7.75 in Mounting position vertical
