PSG2

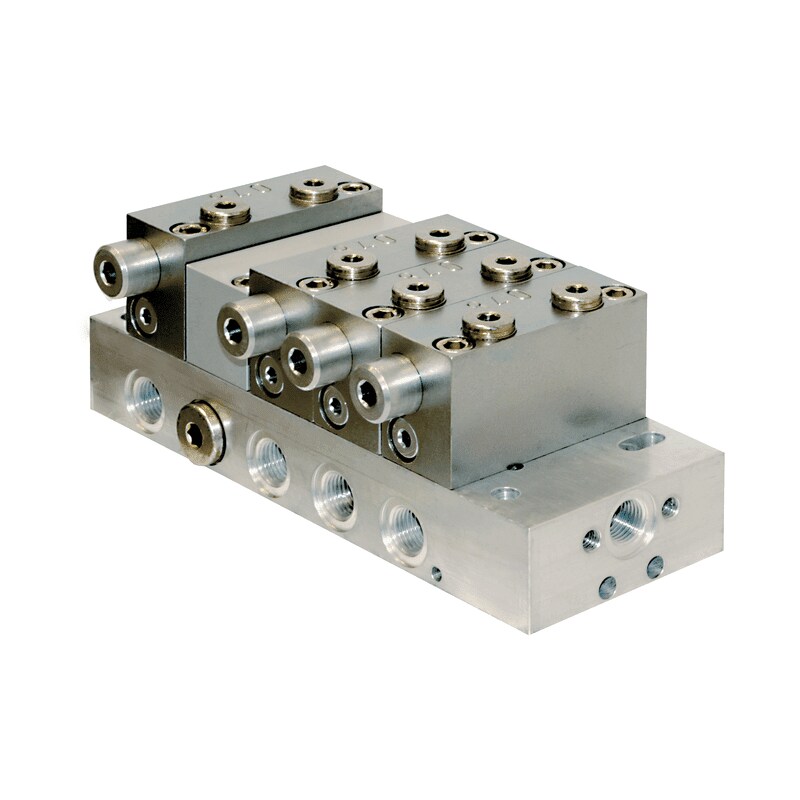

PSG2 (basic)
PSG2 (basic)

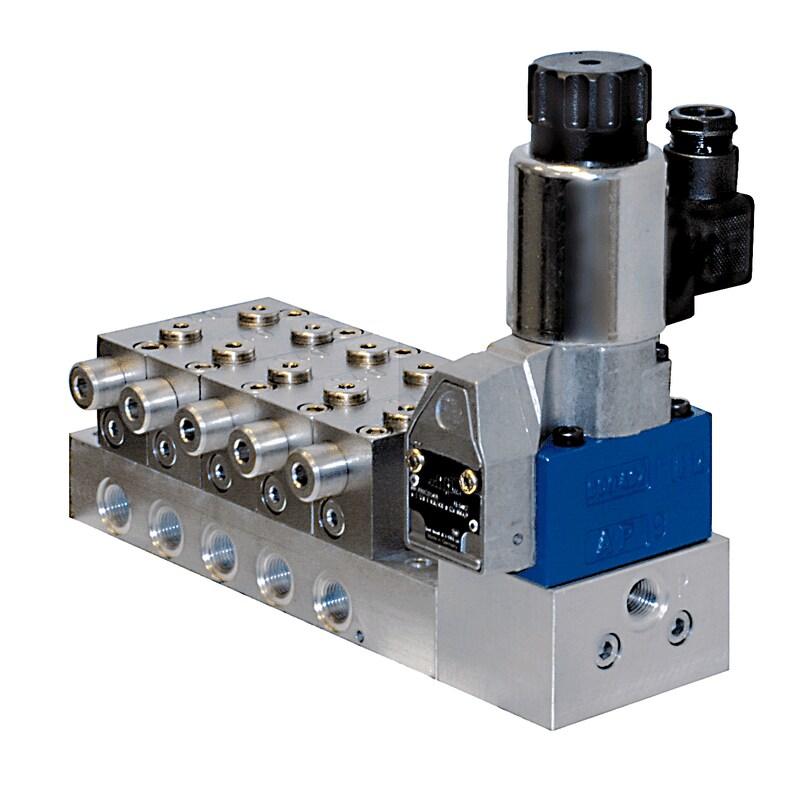

PSG2 with 2 2-directional solenoid valve
PSG2 with 2 2-directional solenoid valve
Modular metering devices for progressive automatic lubrication systems

Technical features:
  • Lubricant: oil and grease
  • Number of sections: 3 - 10
  • Number of outlets: 1 - 20
  • Inlet volume flow: 2500 cm³/min
  • Displacement per outlet: 0,06; 0,12; 0,24; 0,36; 0,48; 0,60; 0,72; 0,84 cm³/cycle
  • Pressure: 200 bar

Optional features:
  • Monitoring: optical and electrical
  • Crossporting: internal and external
  • Attachments: directional solenoid valve, flow limiter, flow meter,  gear-type flow indicator

Special feature:

  • Integrated check valve
