ECP

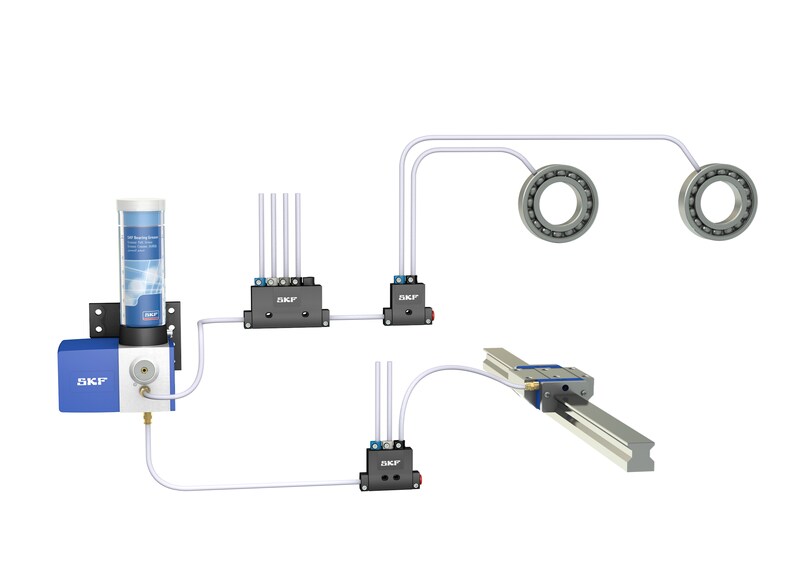

Electric Cartridge Pump for use with single-line systems

SKF Electric Cartridge Pump
ECP1-1WAA11-000000

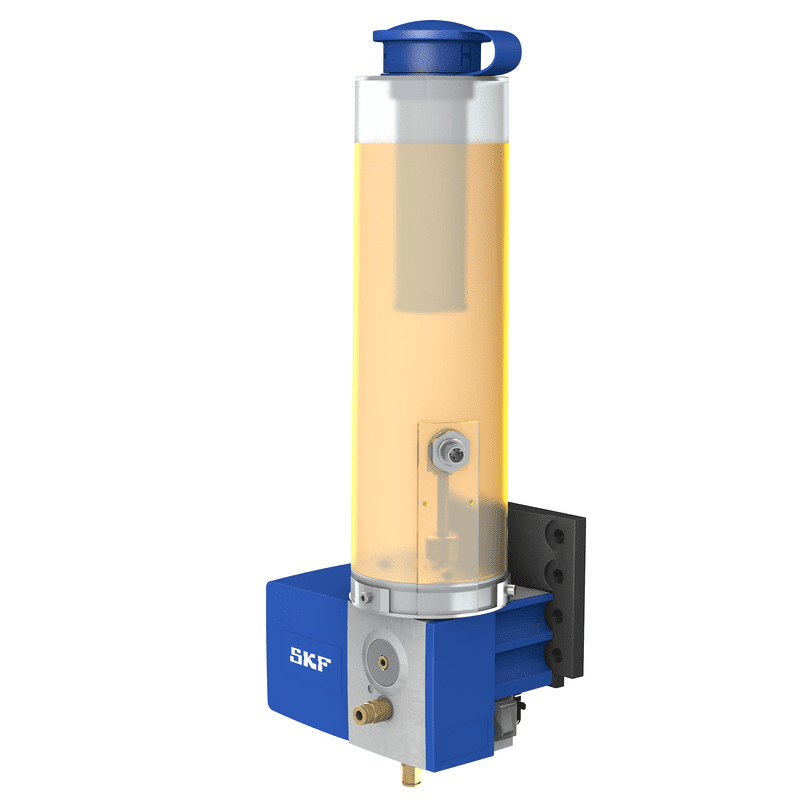

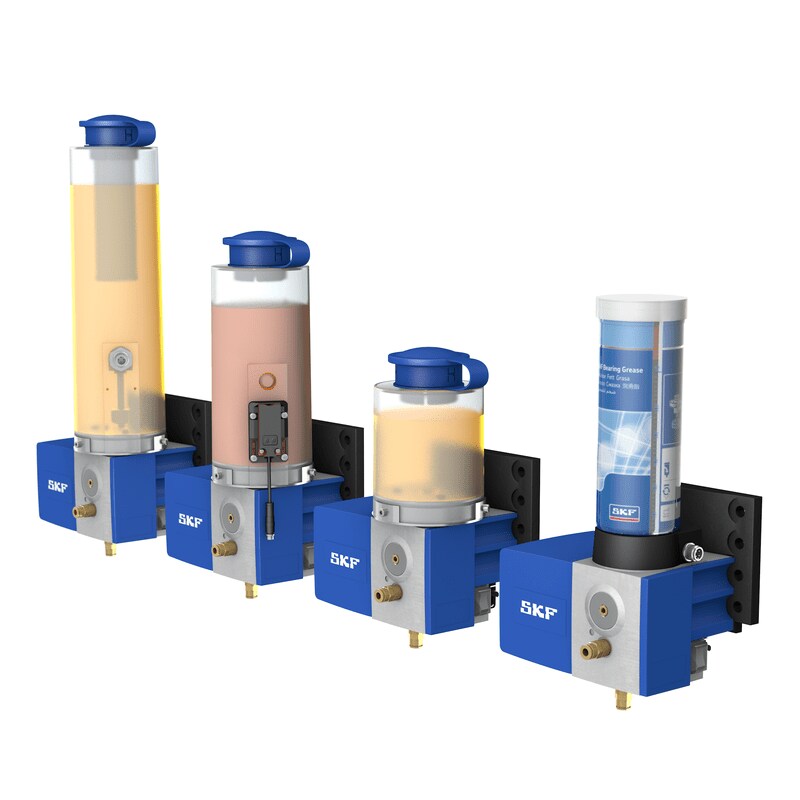

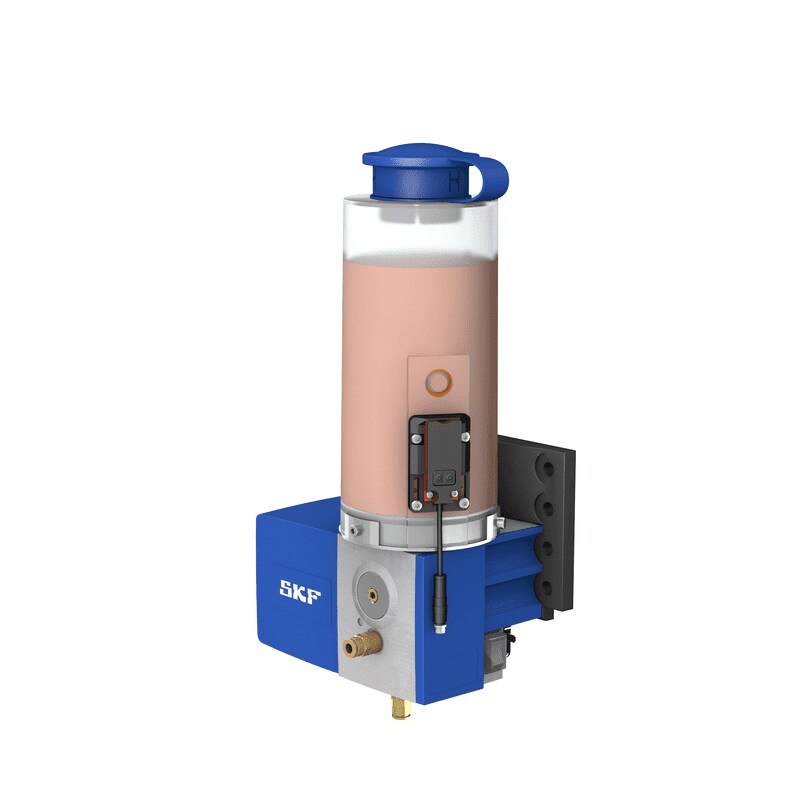

The Electric Cartridge Pump ECP was developed to lubricate bearings and linear guides in small machines. It includes an integrated pressure-relief. This electrically driven piston pump uses 24 V DC and is controlled by an external programmable logic controller (PLC) for convenience. In addition, the pump is capable of manually activating a lubrication cycle and can be used with an optional, integrated level switch to monitor the oil level of the cartridge. Utilizing easy-to-exchange cartridges, it is compatible with oil viscosities from 20 to 1500 mm²/s and fluid grease grades of NLGI 00 and 000.

Features and benefits:

  • Cost effective
  • Simple to operate
  • Available with various lubricants
  • Minimizes risk of using wrong lubricant
  • Increases reliability
  • Reduces unplanned downtime
  • Extends maintenance intervals
  • Minimizes environmental impact via efficient use of lubricants

SKF Electric Cartridge Pump ECP
