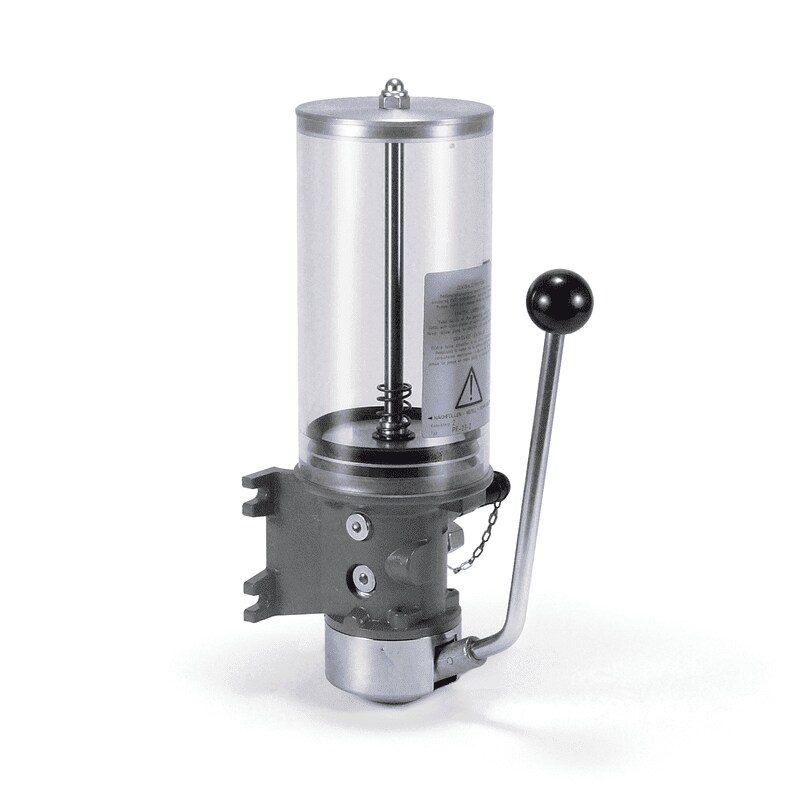

PF-23-2 / PF-23-22

Manually operated single stroke pump

PF-23-2
PF-23-2

PF-23-2 and PF-23-22 are manually operated grease pump units that include a reservoir and follower plate under atmospheric pressure. These pumps are made for small-sized progressive systems or for use as multi-line pumps. When using two outlets, the output of one lever stroke is divided by two. A return line to the reservoir is available. Also, these pumps are equipped with a filling coupler for replenishing the reservoir.

Features and benefits:

  • Small, compact, manually operated pump
  • Up to 100 bar operating pressure ting pressure
  • Pump port for return line is available
  • Refilling via grease coupler avoids grease contamination
  • Available with one or two outlets
