Internal pullers

Fast and easy bearing dismounting

Internal bearing puller kits TMIP series
Bearing puller kits TMIP series

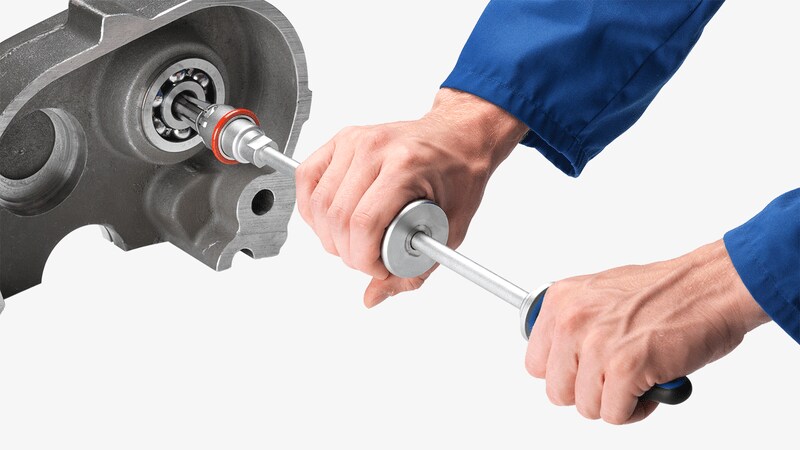

The SKF TMIP Internal bearing pullers are specially designed for dismounting bearings from housings where the fit is on the outer ring.
SKF designed, the bearing pullers generate optimum puller force with use of spring-operated extractors and a unique designed sliding hammer, with no need for additional tools.
  • Easy removal of bearings from housings, decreases the amount of time to dismount the bearing
  • Specifically designed to suit bearing bore diameters, making the selection of extractors easy
  • High-strength chrome coated engineering steel used in the puller construction provides optimum strength and durability
  • Spring operated extractors helps result in easy expansion of the extractor to fit the inner ring
  • Optimised claw design provides a secure grip behind the inner ring, generating higher puller force with less effort
  • Ergonomic sliding hammer facilitates ease of use
  • SKF designed, patent pending

Internal bearing puller kit TMIP 7-28 (fig 1)
Supplied with 4 extractors covering bore diameters from 7 to 28 mm (0.28 to 1.1 in.)

Internal bearing puller kitTMIP 30-60 (fig 2)
Supplied with 2 extractors covering bore diameters from 30 to 60 mm (1.2 to 2.4 in.)
Kit contents
TMIP 7-28
TMIP 30-60
Slide hammer
Slide hammer
Extractors
7 - 9 mm (0.28 - 0.35 in.)
10 - 12 mm (0.39 - 0.47 in.)
15 - 17 mm (0.59 - 0.67 in.)
20 - 28 mm (0.79 - 1.1 in.)
Extractors:
30 - 40 mm (1.2 - 1.6 in.)
45 - 60 mm (1.8 - 2.4 in.)


IFU card
IFU card
Carrying case
Carrying case
Technical data
Designation
TMIP 7-28
TMIP 30-60
Description
Internal bearing puller
Internal bearing puller
Weight (total kit)
3.1 kg (6.8 lb)
5.4 kg (11.9 lb)
Total sliding hammer length
412 mm (16.2 in.)
557 mm (21.9 in.)
Case size (l x w x h)
530 x 85 x 180 mm
(20.9 x 3.4 x 7.0 in.)
530 x 85 x 180 mm
(20.9 x 3.4 x 7.0 in.)
Technical data extractors (metric)
Extractor
size
Bearing bore
diameter
Maximum
bearing width
Space behind
bearing
Housing
depth

mm
mm
mm
mm
TMIP 7–28
TMIP E7–9
TMIP E10–12
TMIP E15–17
TMIP E20–28

7–9
10–12
15–17
20–28

10
11
18
24

6
6
7,5
10

39
45
55
60





TMIP 30–60
TMIP E30–40
TMIP E45–60

30–40
45–60

>35
>64

11,5
15

97
102
Technical data extractors (imperial)
Extractor
size
Bearing bore
diameter
Maximum
bearing width
Space behind
bearing
Housing
depth

in.
in.
in.
in.
TMIP 7–28
TMIP E7–9
TMIP E10–12
TMIP E15–17
TMIP E20–28

0.28–0.35
0.39–0.47
0.59–0.67
0.79–1.1

0.39
0.43
0.71
0.94

0.24
0.24
0.29
0.4

1.5
1.8
2.2
2.4





TMIP 30–60
TMIP E30–40
TMIP E45–60

1.2–1.6
1.8–2.4

1.38
2.52

0.45
0.6

3.8
4.0
