85209 / 85208

Controller for use in single-line lubrication systems

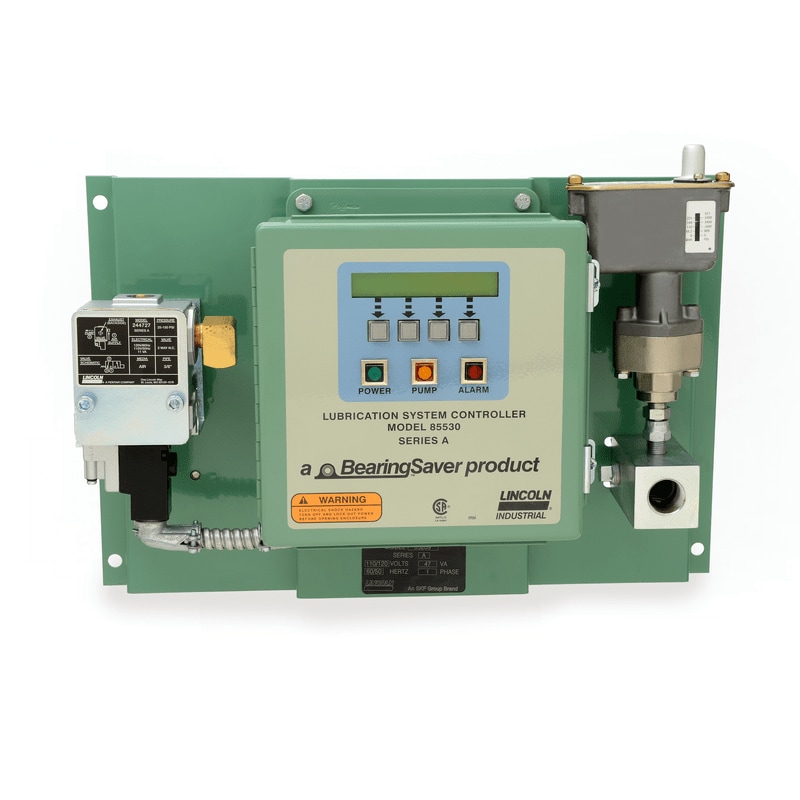

Single-line, panel mounted pneumatic control system model 85209

Model 85209 and 85208 are panel-mounted pneumatic control systems. They control lubrication frequency and monitor supply line pressure. Each system includes a model 85530 controller, model 69630 pressure switch and solenoid-operated air valve. To program, simply follow a user-friendly menu and press the active buttons beneath the display. An internal jumper pin provides security against unauthorized programming. All programmed parameters are automatically stored in memory and can be reactivated easily to display what has been programmed. Three lights on the enclosure door indicate the system status.

Features and benefits:
  • Panel-mounted pneumatic control system
  • Customer can program the controller
  • Security against unauthorized programming
  • All programmed parameters are automatically stored in memory
  • Programmed values can be changed whenever necessary
  • Three lights indicate system status
  • Technical features
    Function principlecontroller
    Operating temperature0 to +50 °C+32 to 122 °F
    Operating voltage
    85209120 V AC, 60 Hz, 47 VA
    110 V AC, 50 Hz, 47 mA
    85208220 V AC, 50/60 Hz
    Operating current (less load)
    24 V DC250 mA
    120 V DC85 mA
    230 V DC45 mA
    External load pump/alarm360 VA
    pilot duty rating at 120/230 V AC
    Ampacity to terminal strip B15 V DC: 8 mA
    Off-time cyclemin. 1 min; max. 9 900 min
    Alarm timemin. 1 min; max. 99 min
    Timing accuracy0,01% (crystal controlled)
    Off-time countsmin. 1 min; max. 9 900 counts
    Count rate30 counts/sec at 50% duty cycle
    Protection classNEMA 12 enclosure
    Dimensions464 × 305 × 105 mm18 × 12 × 4 in
    Mounting positionvertical
  • Applications
