Pneumatically operated pump for use with single-line systems

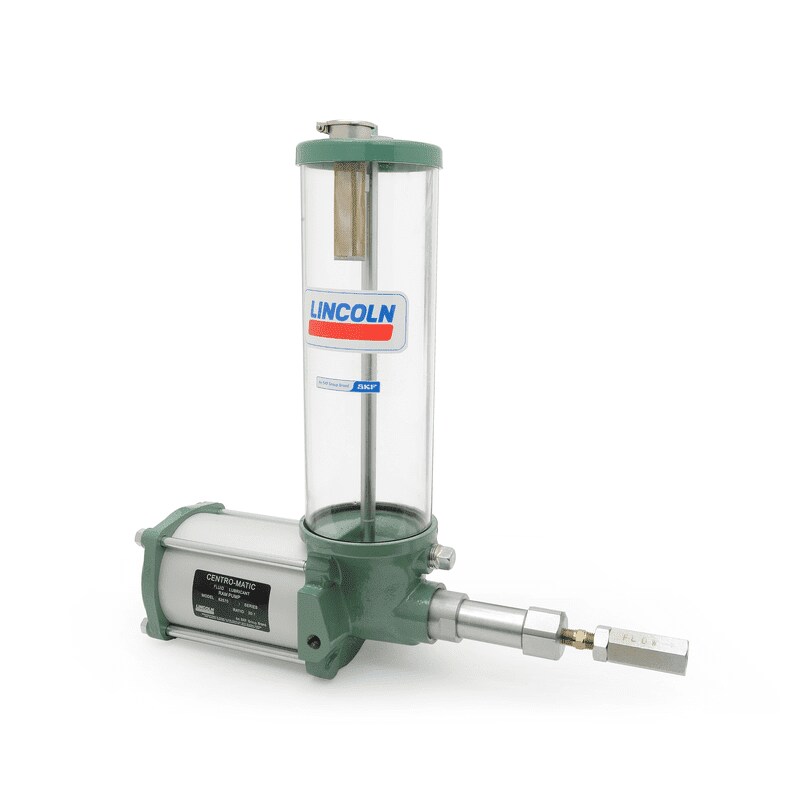

Pump model 82570 is a high-volume pump. It discharges lubricant on the air-powered forward stroke and releases pressure on the lubricant line through included check/relief valve on the air-powered return stroke. Its acrylic reservoir is refilled through the filler cap with strainer.
Features and benefits:
- Reservoir with filler cap and internal strainer
- Remote system components available upon request
- Suitable for use with single-line metering devices
Function principle pneumatically operated piston pump
Outlets 1 Metering quantity 39,3 cm³/stroke 2.4 in³/stroke Lubricant oil, synthetic oils on request Operating temperature -23 to +65 °C -10 to +150 °F Operating pressure max. 70 bar max. 1000 psi Reservoir 2,0 l 0.52 gal Material (reservoir) acrylic Connection outlet 1/4 NPTF (F) Air valve required, 4-way Transmission ratio 20:1 Dimensions 451 × 146 × 464 mm 17.75 × 5.75 × 18.25 in Mounting position vertical
