Adapter block

Adapter block 226402

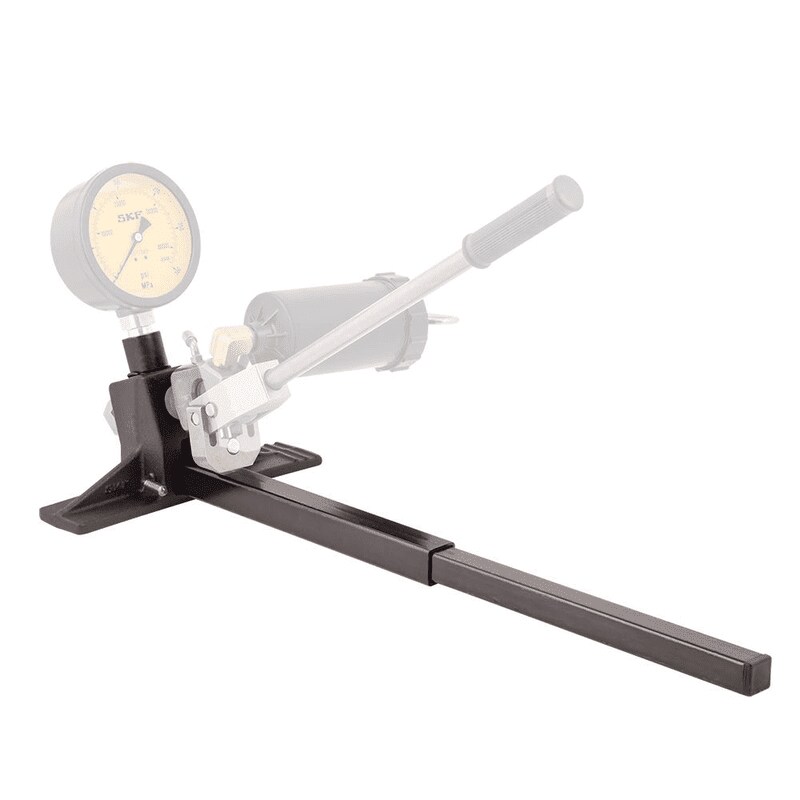

The adapter block 226402 consists of a cast steel block to which a pressure gauge and high pressure pipe can be connected. It comes with a floor support and a 90 degree connection nipple for the oil reservoir.

Technical data
Designation
226402
Maximum pressure
400 MPa (58 000 psi)
Pressure gauge connection
G1/2
Pressure pipe connection
G3/4
Length of floor support
570 mm (22.4 in.)
Weight
2,55 kg (5.6 lb)
