Oil injectors

300 and 400 MPa (43 500 and 58 000 psi)

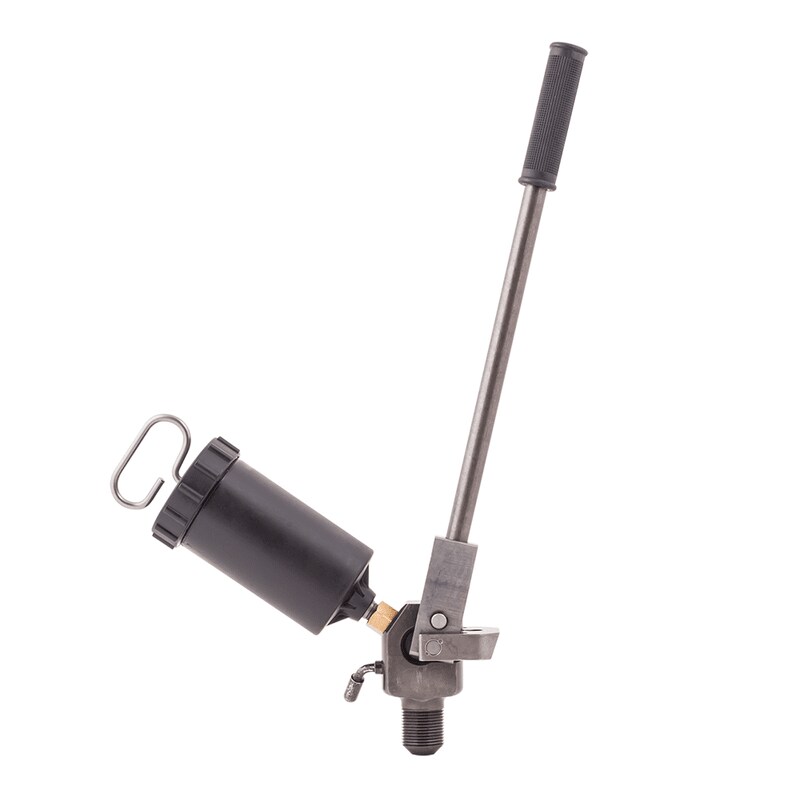

SKF Oil injector 226400 E series
The 226400 E series is suitable for many applications using the SKF oil injection method. The injector is supplied with an oil reservoir in a compact carrying case.
The injector can be mounted directly onto the work piece or connected to an adapter block to make a floor standing model, making it easy to connect pressure gauges and high pressure pipes.

For applications where 400 MPa (58 000 psi) is required, the SKF 226400 E/400 is available.
  • Easy to operate
  • Compact carrying case
  • When the pressure is released, the unused oil is automatically returned to the reservoir, minimizing the risk of oil leakage to the environment
  • Oil container capacity 200 cm³ (12.2 in.³)
  • Can be used with a wide range of accessories, such as:

Typical applications
  • Bearings
  • Couplings
  • Railway wheels
  • Gear wheels
  • Flywheels
  • SKF OK Couplings
  • For many oil injection applications where maximum pressures of up to 400 MPa (58 000 psi) is required

Technical data
Designation
226400 E
226400 E/400
Maximum pressure
300 MPa (43 500 psi)
400 MPa (58 000 psi)
Volume /stroke
0,23 cm3 (0.014 in.3)
0,23 cm3 (0.014 in.3)
Oil container capacity
200 cm3 (12.2 in.3)
200 cm3 (12.2 in.3)
Connecting threads
G3/4
G3/4
Weight
2,2 kg (4.8 lb)
2,2 kg (4.8 lb)
Case dimensions   530 x 85 x 180 mm
(20.9 x 3.4 x 7.0 in.)
530 x 85 x 180 mm
(20.9 x 3.4 x 7.0 in.)
