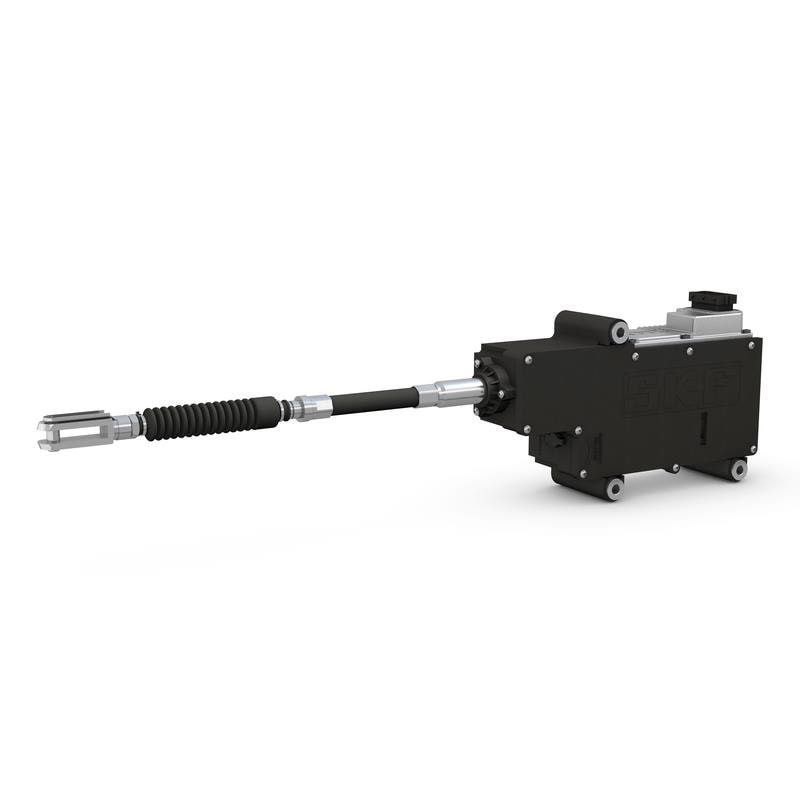

SKF Electronic Parking Brake
The SKF Electronic Parking Brake is a cable puller actuator: a compact and smart solution developed to provide a robust parking brake function on the vehicle.
Specifically designed for harsh environments and operating over the vehicle CAN bus.
This actuator offers an add-on solution which integrates Electronic Control Unit (ECU) and embedded software.
It is connected to the vehicle braking system by a flexible cable (Bowden cable).
Features and Benefits
- Scalable and add-on solution: can equip the full wheelbase vehicle range.
- Able to implement “smart functions” increasing end user comfort.
- Equipped with integrated ECU (Electronic Control Unit).
Standard version with basic functions available.
- Nominal force range: 2000 N to 4000 N
- Max available stroke: 65 mm
- Max speed: 18 mm/s
- Nominal Supply Voltage: 12 V DC
Protection Level: IP 67
- Off-highway vehicles
- Light Commercial vehicles
