LMC 101

Controller for low-voltage lubrication applications

LMC 101 controller

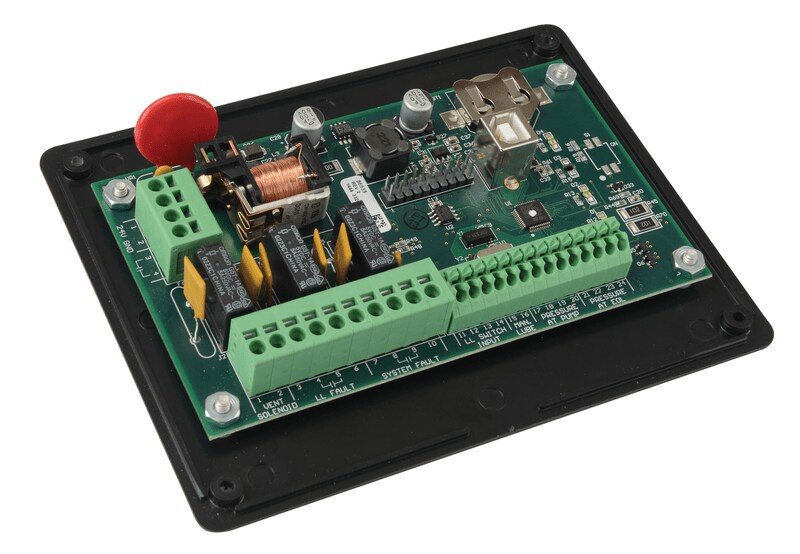

LMC 101 controller, model 86535
LMC 101 controller
LMC 101 controller, model 86535

The versatile SKF LMC 101 controller operates as a timer or controller on single-line or progressive lubrication systems. It has been developed for use on off-road and mobile equipment. The LMC 101 also is suitable for many low-voltage, industrial lubrication applications, as found in food and beverage, pulp and paper and steel markets.

The LMC101 must be programmed via USB connection to a PC. In timer mode, the lubrication cycle ends when the pre-assigned time has expired. In controller mode, the lubrication cycle ends when the pressure switch, pressure transducer or piston detector actuates. The system allows pressure to dissipate to the end of the supply line once pressure at the pump is reached.

Features and benefits:

  • Operates single-line or progressive lubrication systems
  • Functions as a timer or controller
  • Records history of system operation and fault codes
  • Configured using PC software and USB connection
  • Four in- and outputs
