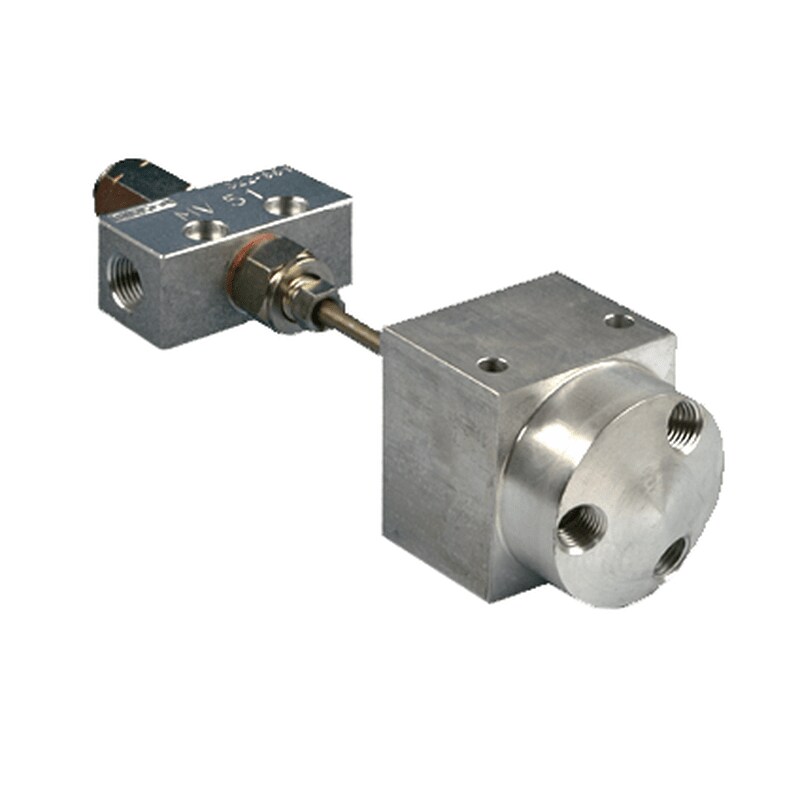

MV5x

MV51-322-861
Mixing valves without integrated metering unit for SKF Oil+Air lubrication systems
Technical features:
Special features:
Technical features:
-
Lubricant: oil on a petroleum basis or synthetic basis compatible with NBR elastomers, plastics, copper and copper alloys
-
Number of outlets: 1 or 7
-
Metering externally: 0,003 - 0,2 cm³
-
Oil pressure: 5 bar
-
Operating viscosity: up to 3000 mm²/s
-
Operating medium:
- Compressed air: max: 10 bar
- Delivery at 10 bars: 1329 l/min
Special features:
- none
Related documents
- Product brochure: 1-5012-3-EN (1.3 MB)
