Progressive metering devices

Lubricant metering devices for progressive automatic lubrication systems

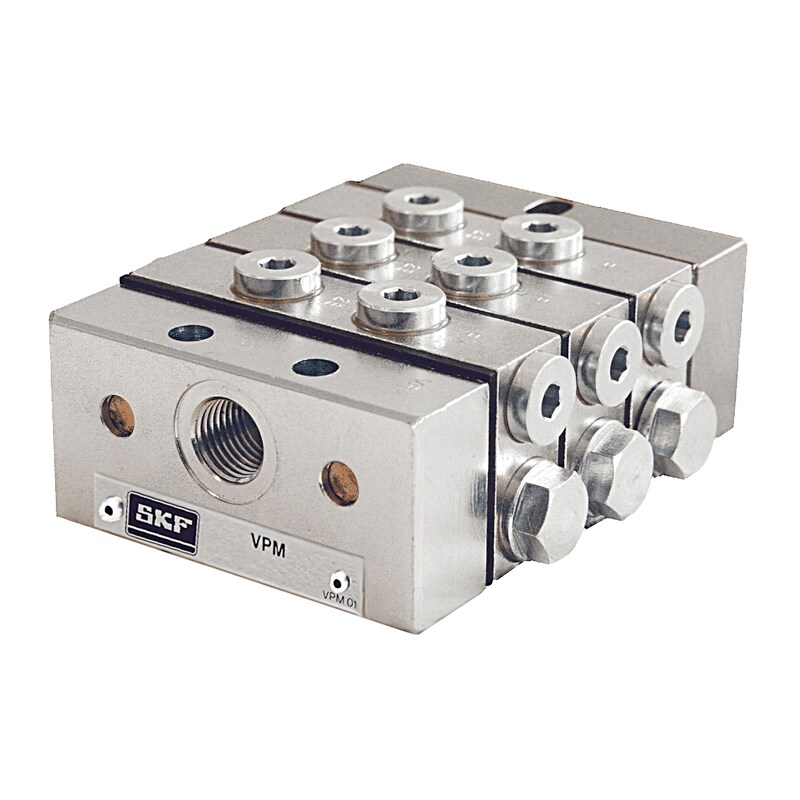

VP basic

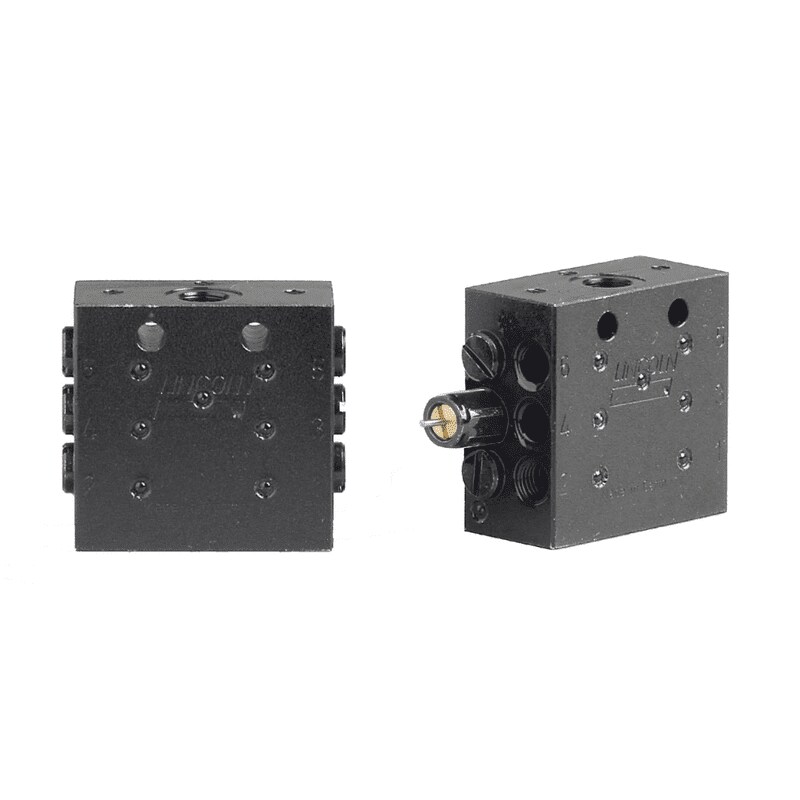

SSVM type metering device

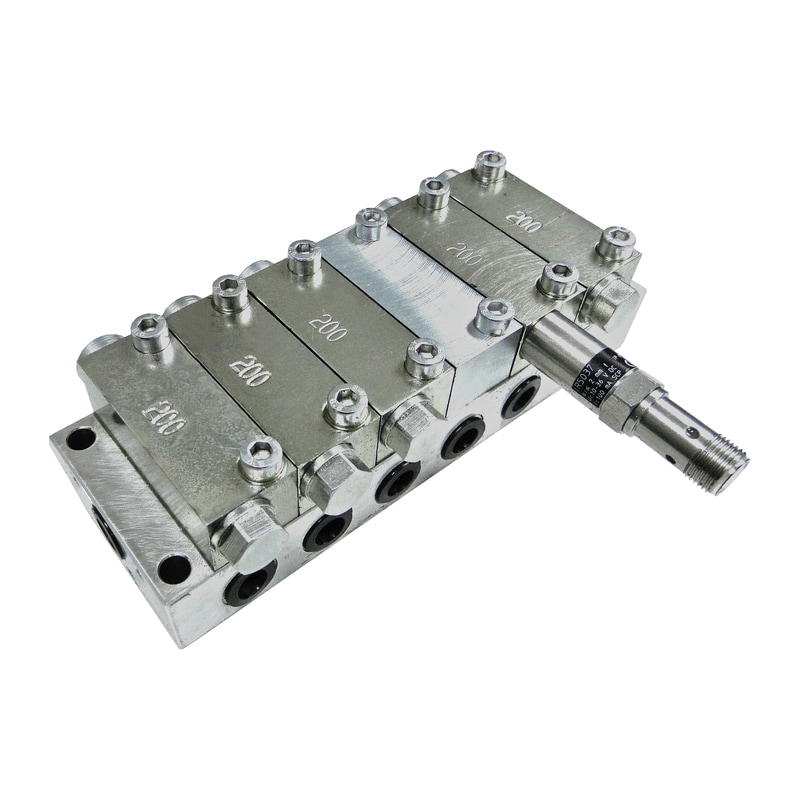

PSG1 with piston detector

Working principle:

  • Progressive metering devices distribute the lubricant one after another in amounts relative to the individual metering rates of each section.
  • Each lubricant outlet can only supply one lubrication point with lubricant.
  • If the demand for lubricant is high at one lubrication point, several outlet ports can be combined into one.
  • Thanks to the way a device works, it is possible to monitor the systems operation by monitoring one metering piston with the help of a cycle indicator (visual) or a piston detector (electrical or electronic).
All models (sectional, block or modular design) work according to the same basic principle. The type selected will depend on:
  • the operating conditions
  • installation conditions
  • commercial requirements
  • technical demands on the metering volume of each outlet port
  • replacing or exchanging of individual feeder chambers
  • Overview

    ProductMetering quantityOperating pressure

    cm³/strokein³/strokebarpsi

    Block design metering devices
    SSVM0,070.0042002900
    SSVD0,08-1,800.001-0.113505075
    SPVS0,16-0,320.010-0.021001450
    SSV0,20.013505075
    VPB0,20.013004350

    Sectional design metering devices
    VPK0,050–0,6000.003–0.0373004350
    VP0,100–1,2000.006–0.0733004350

    Modular design metering devices
    UV0,164–0,6560.010–0.0402403480
    MC²-HP0,196–0,3930.012–0.0245107425
    XL0,983–2,4600.060–0.1501702495
    PSG150-2503.05-15.252002900
    PSG260-8403.66-51.242002900
    PSG3800-320048.80-195.202002900
