Oil Conditioning unit

SKF Oil Conditioning unit
SKF Oil Conditioning unit

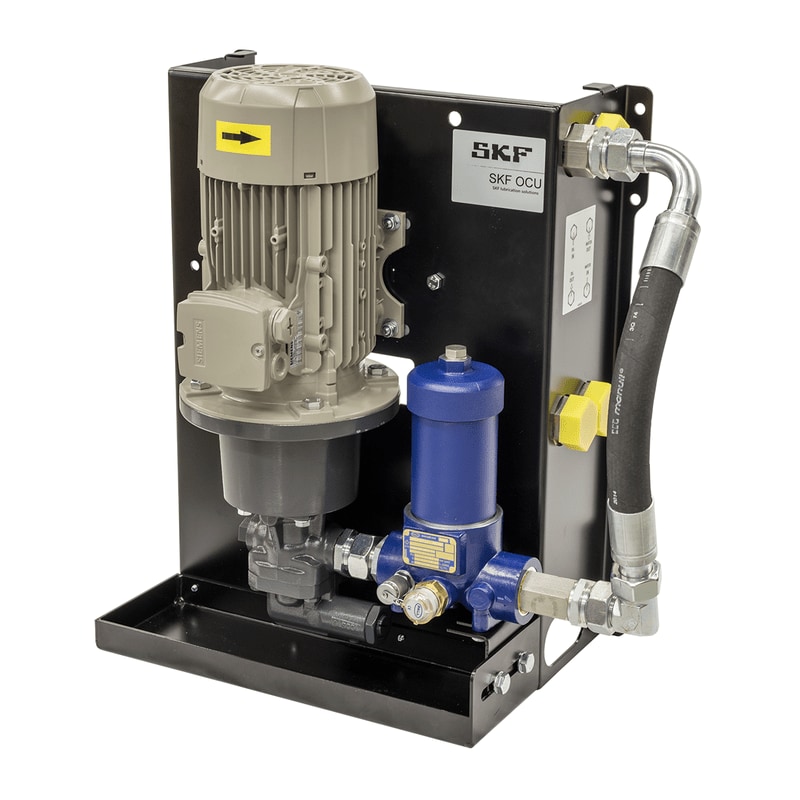

SKF Oil Conditioning unit is a low-pressure pump-filtration unit to circulate the oil in a given system and removes contaminants. Five different pump-filtration unit sizes. The unit can also be equipped with optional air or water coolers.

Technical features:
  • Flowrates from 5 - 80 l/min
  • Oil viscosity: 15 - 800 cSt
  • Filteration rating: 20 μm
  • Pressure: max. 10 bar
  • Cooling capacity: 3 - 30 kW


Special features:
  • Electrical clogging indicator
  • Temperature transmitter with display
  • Pressure transmitter with display
  • Manometer
  • Thermometer
  • Level switch assembly
  • Shut-off valve before unit
  • Flowmeter (SKF Flowline or SKF Safeflow)
  • Moisture transmitter
