Automatic lubricator accessories
A full range for enhanced versatility of SKF single-point automatic lubricators
Ordering details
|
||||
Designation
| Description
| Suitable for use with: | ||
Connectors | LAGD
series | TLSD
series | TLMR
series |
|
LAPA 45
| Angle connection 45°
| • | • | • |
LAPA 90
| Angle connection 90°
| • | • | • |

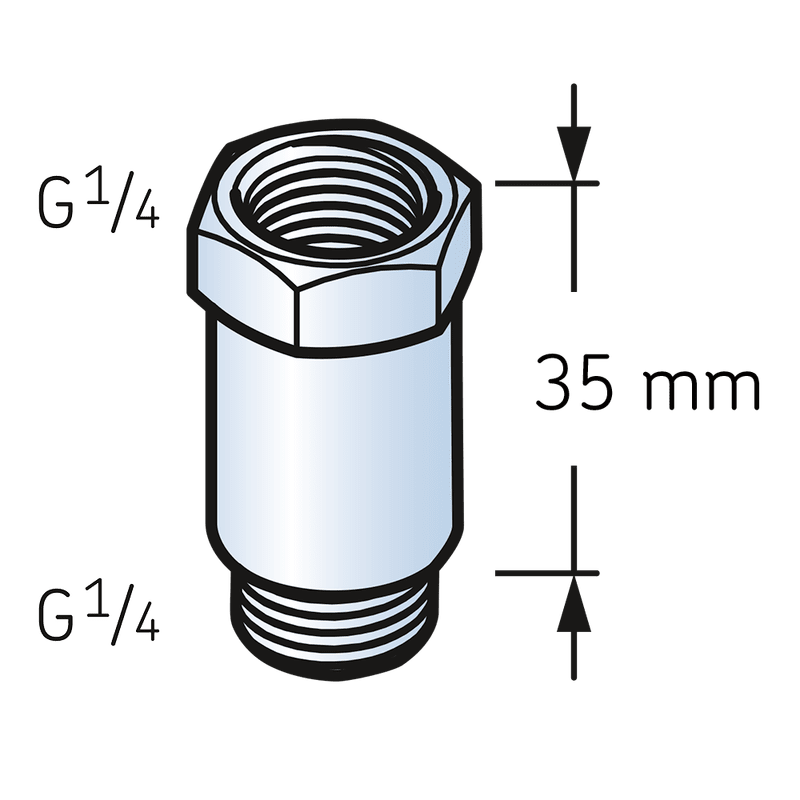

LAPE 35
| Extension 35 mm
| • | • | • |

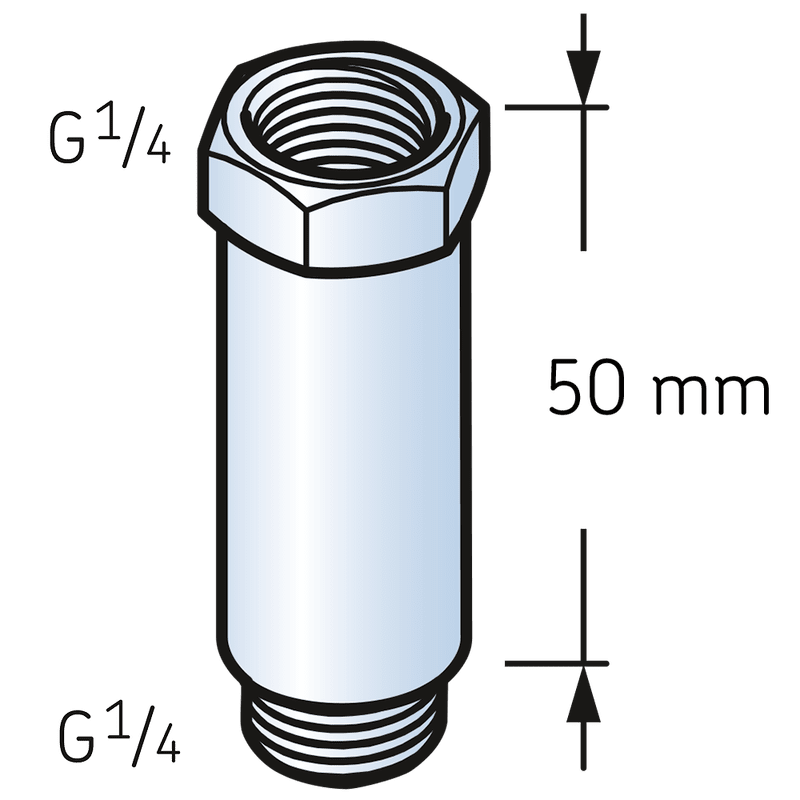

LAPE 50
| Extension 50 mm
| • | • | • |

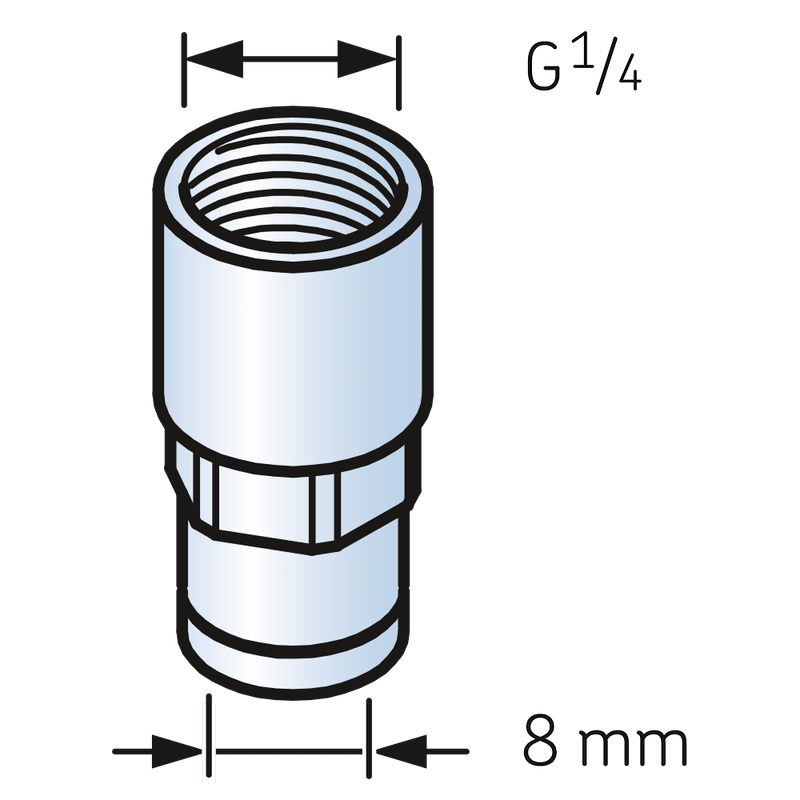

LAPF F1/4
| Tube connection female G1/4
| • | • | |

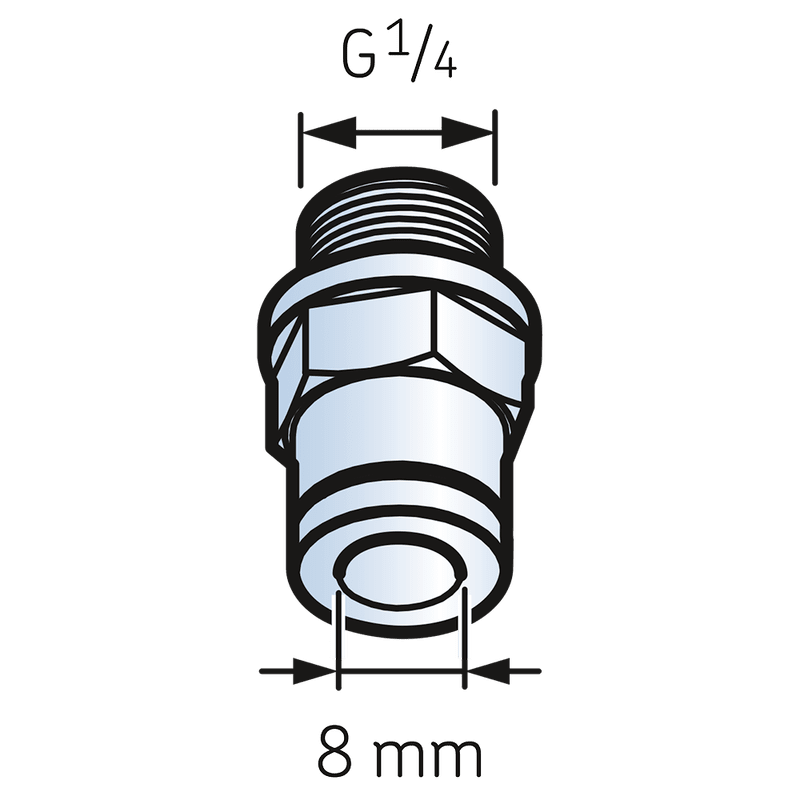

LAPF M 1/4
| Tube connection male G1/4
| • | • | |
LAPF M 1/4S
| Tube connection male G1/4
for 6x4 tube | • | ||
LAPF M 1/4SW | Extra strong tube connection
male G1/4 | • | • | • |
LAPF M 1/8
| Tube connection male G1/8
| • | • | |

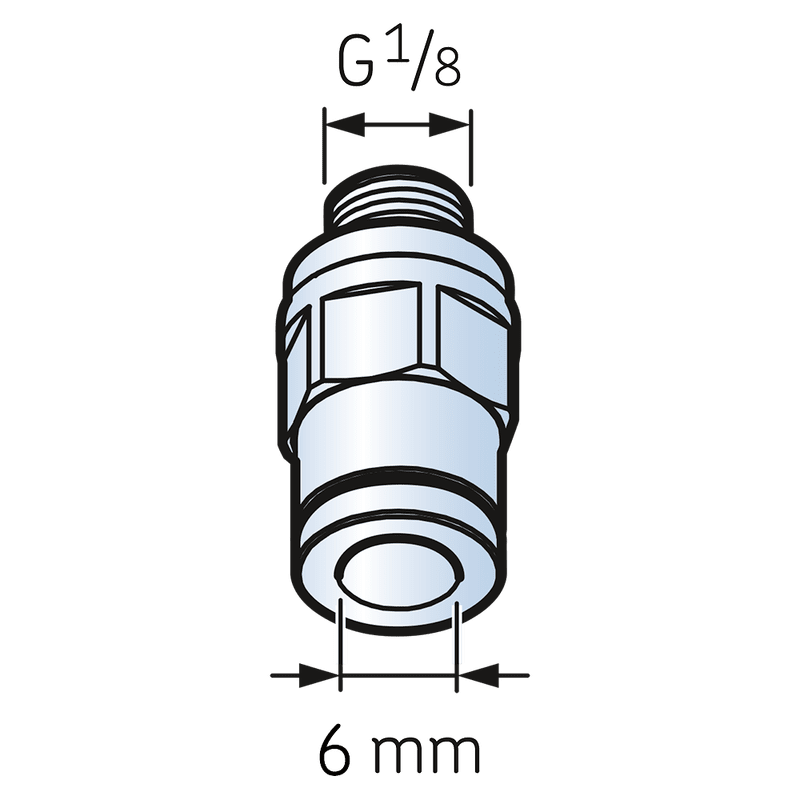

LAPF M 1/8S
| Tube connection male G1/8
for 6x4 tube | • | ||
LAPF M 3/8
| Tube connection male G3/8
| • | • | |
LAPG 1/4
| Grease nipple G1/4
| • | • | • |

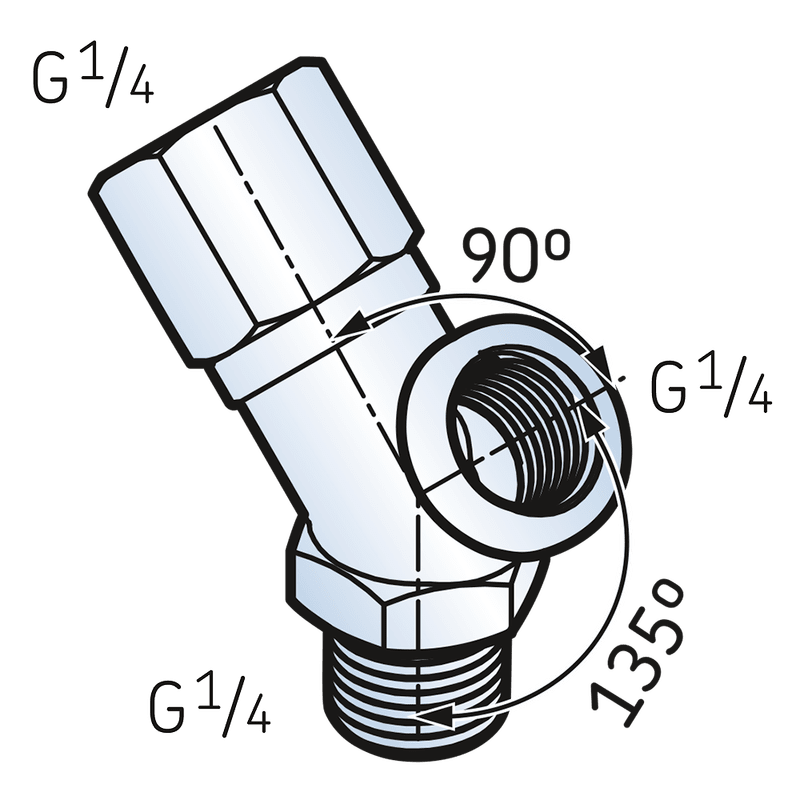

LAPM 2
| Y-connection
| • | • | • |
LAPN 1/8
| Nipple G1/4 – G1/8
| • | • | • |

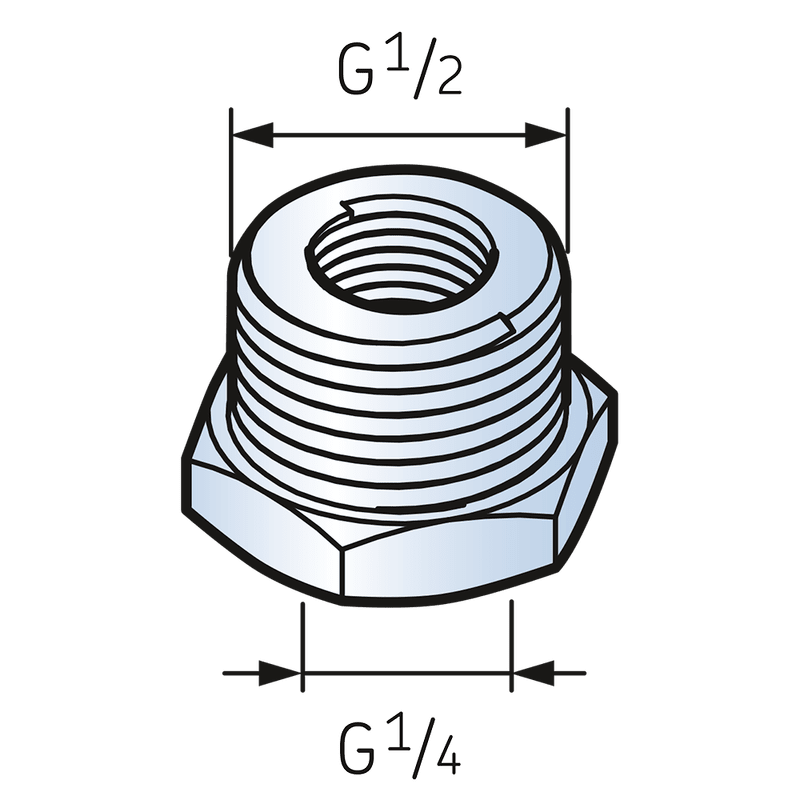

LAPN 1/2
| Nipple G1/4 – G1/2
| • | • | • |
LAPN 1/4
| Nipple G1/4 – G1/4
| • | • | • |
LAPN 1/4 UNF
| Nipple G1/4 – 1/4 UNF
| • | • | • |

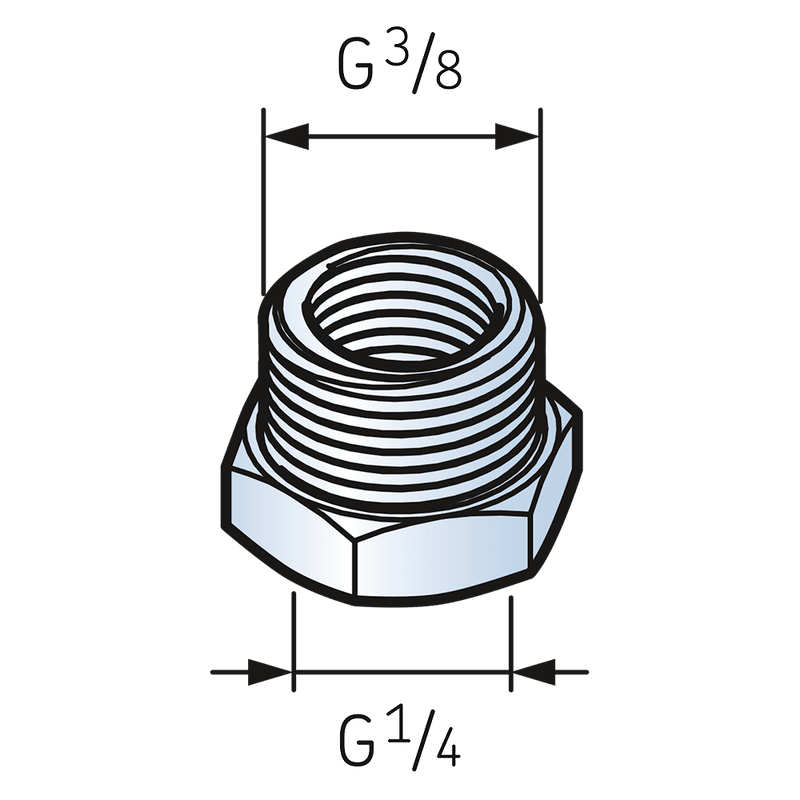

LAPN 3/8
| Nipple G1/4 – G3/8
| • | • | • |

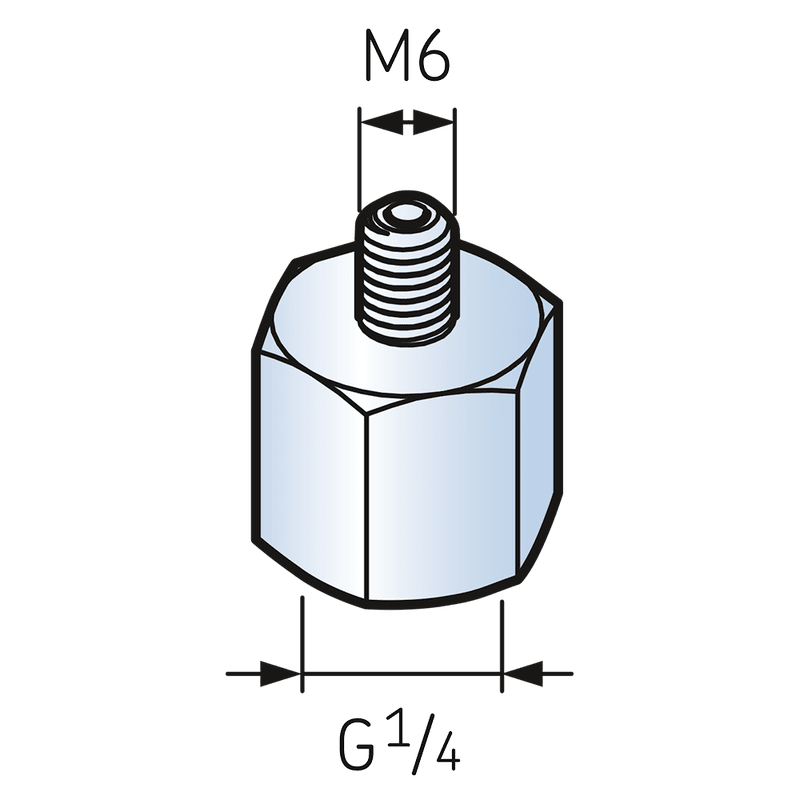

LAPN 6
| Nipple G1/4 – M6
| • | • | • |
LAPN 8
| Nipple G1/4 – M8
| • | • | • |

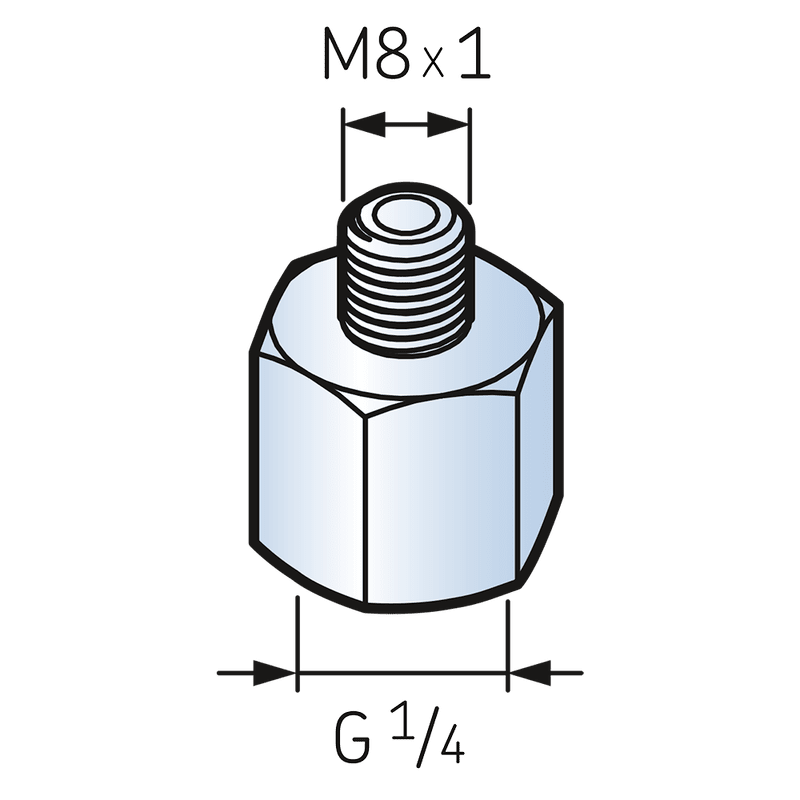

LAPN 8x1
| Nipple G1/4 – M8 x 1
| • | • | • |
LAPN 10
| Nipple G1/4 – M10
| • | • | • |

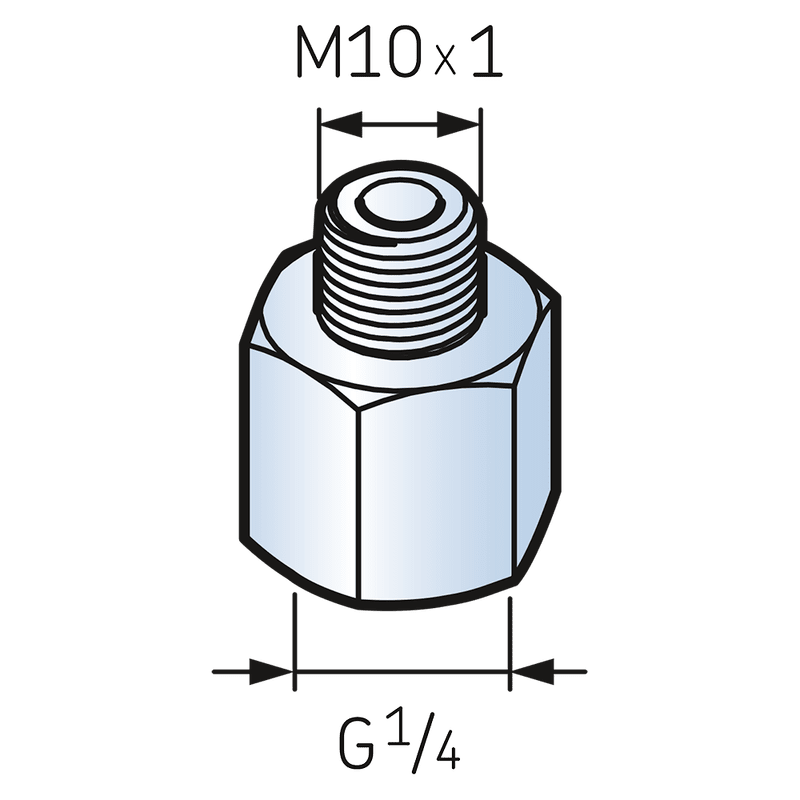

LAPN 10x1
| Nipple G1/4 – M10 x 1
| • | • | • |
LAPN 12
| Nipple G1/4 – M12
| • | • | • |

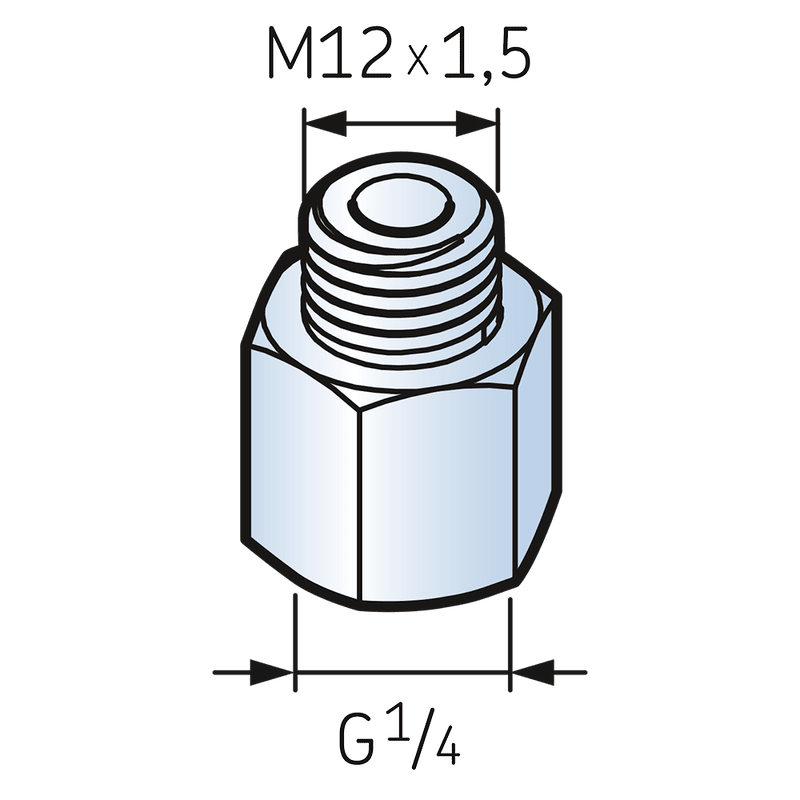

LAPN 12x1.5
| Nipple G1/4 – M12 x 1,5
| • | • | • |
Non return valves (for oil applications) | ||||

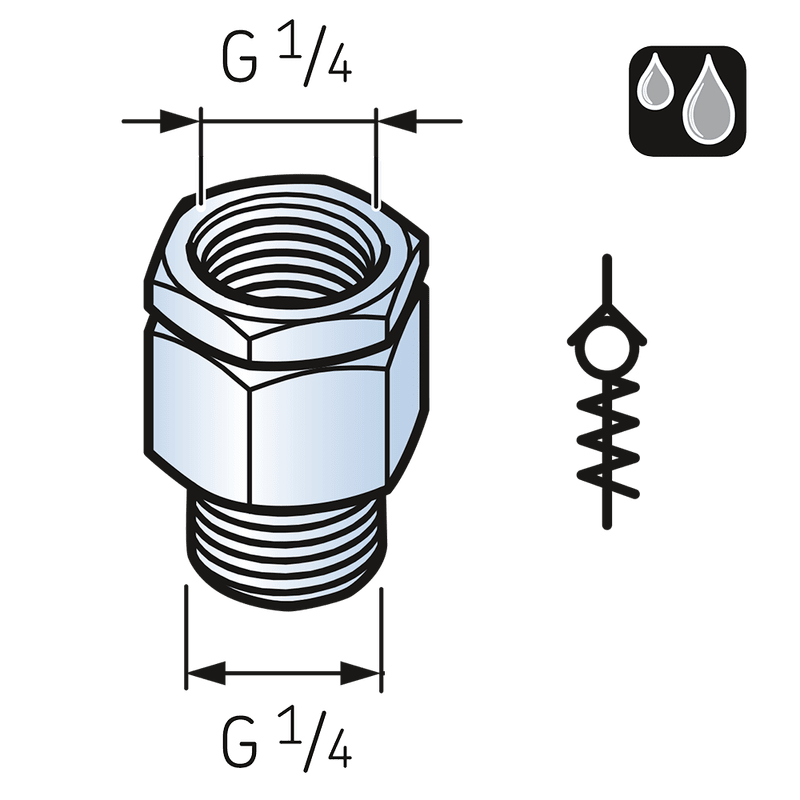

LAPV 1/4
| Non-return valve G1/4
| • | • | • |

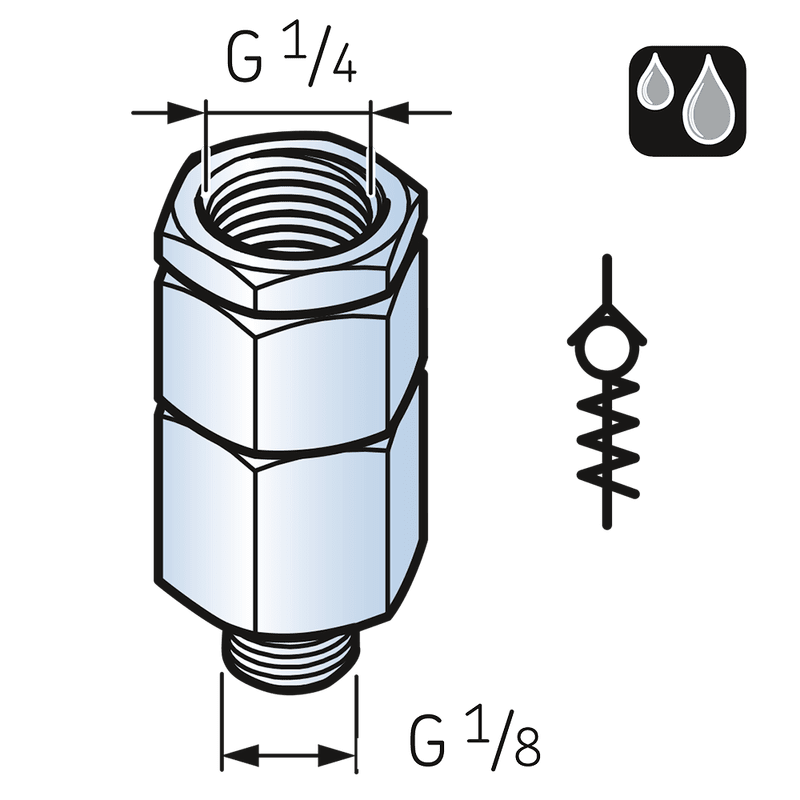

LAPV 1/8
| Non-return valve G1/8
| • | • | • |
Brushes (for oil applications) | ||||

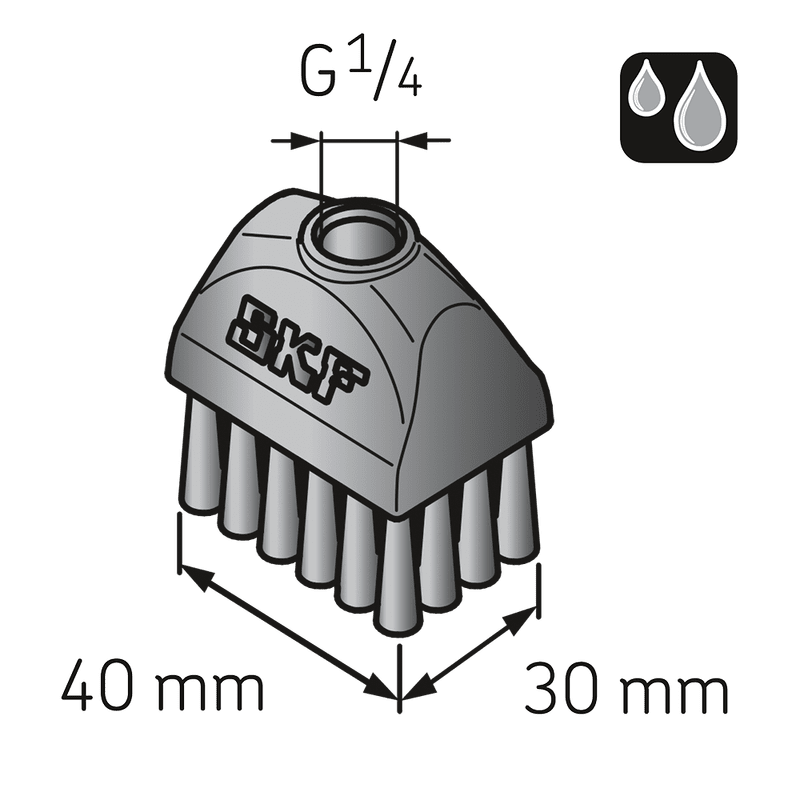

LAPB 3x4E1
| Brush 30 x 40 mm
| • | • | • |
LAPB 3x7E1
| Brush 30 x 60 mm
| • | • | • |

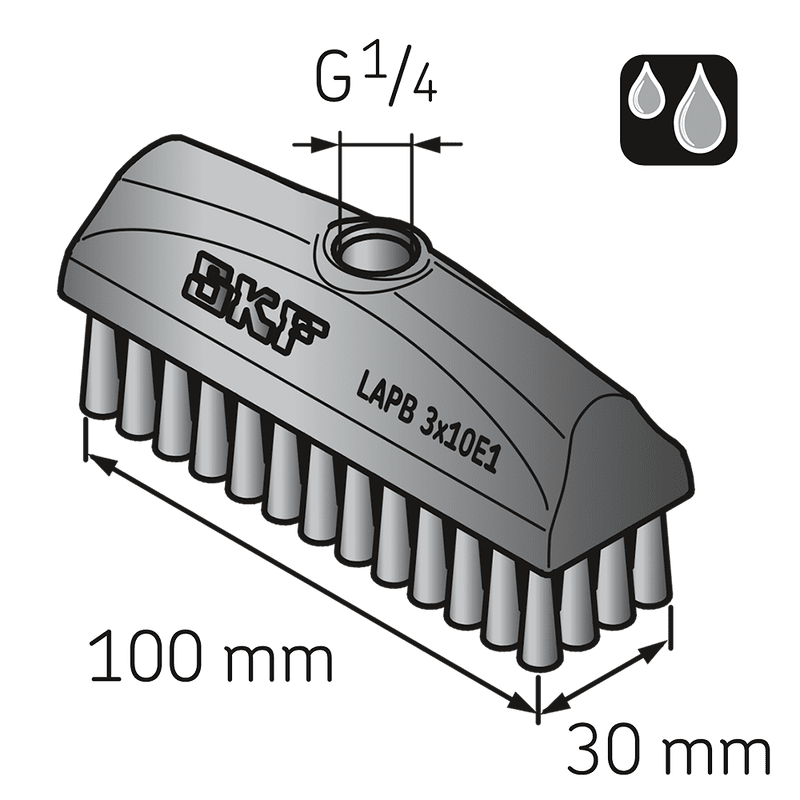

LAPB 3x10E1
| Brush 30 x 100 mm
| • | • | • |
LAPB 5-16E1
| Elevator brush, 5–16 mm gap
| • | • | |
Flexible tubes | ||||
LAPT 1000
| Flexible tube, 1 000 mm long,
8 x 6 mm | • | • | |
LAPT 1000S
| Flexible tube, 1 000 mm long,
6 x 4 mm | • | ||
LAPT 1000SW | Extra strong flexible tube,
1 000 mm long, 8 x 6 mm | • | • | • |
LAPT 5000
| Flexible tube, 5 000 mm long,
8 x 6 mm | • | • | |
LAPT 5000S
| Flexible tube, 5 000 mm long,
6 x 4 mm | • | ||
LAPT 5000SW | Extra strong flexible tube,
5 000 mm long, 8 x 6 mm | • | • | • |
Mounting and protecting devices,
and extras | ||||

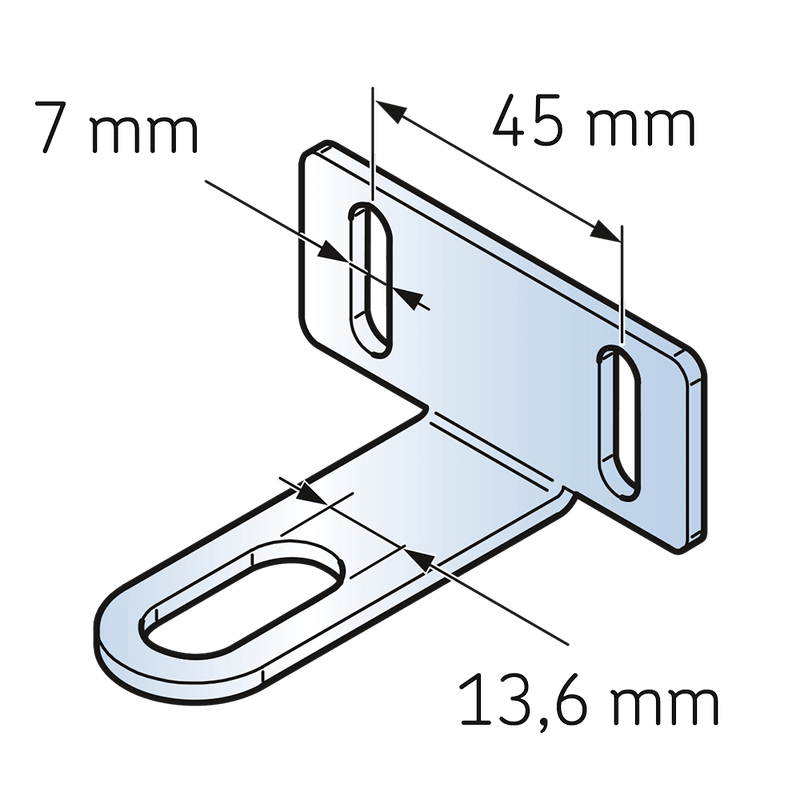

LAPC 13 | Bracket
| • | ||
LAPC 50
| Clamp
| • | ||
LAPC 63
| Clamp
| • | ||

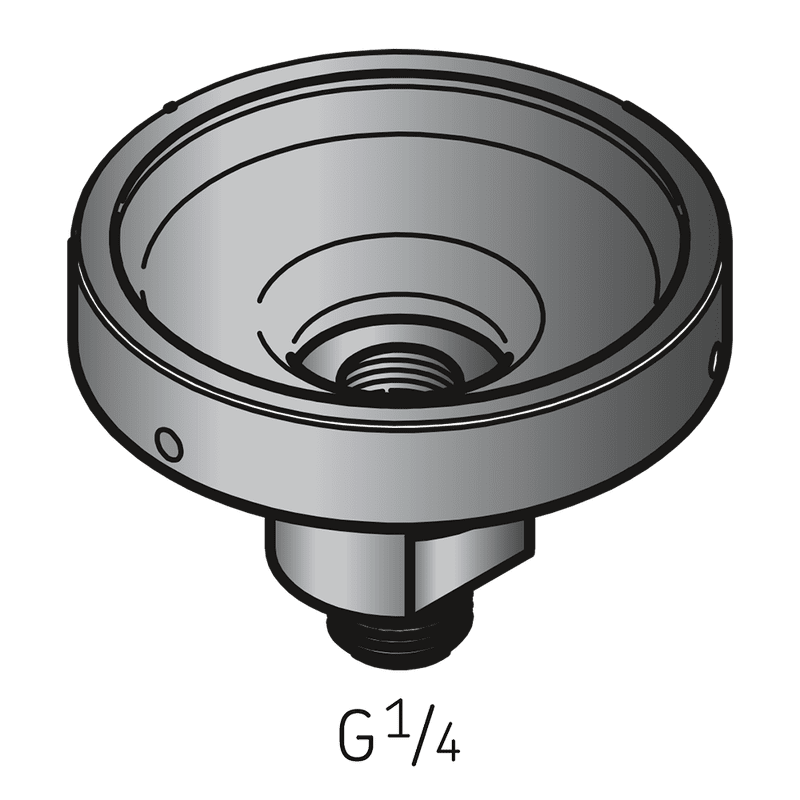

LAPP 4
| Protection base
| • | ||

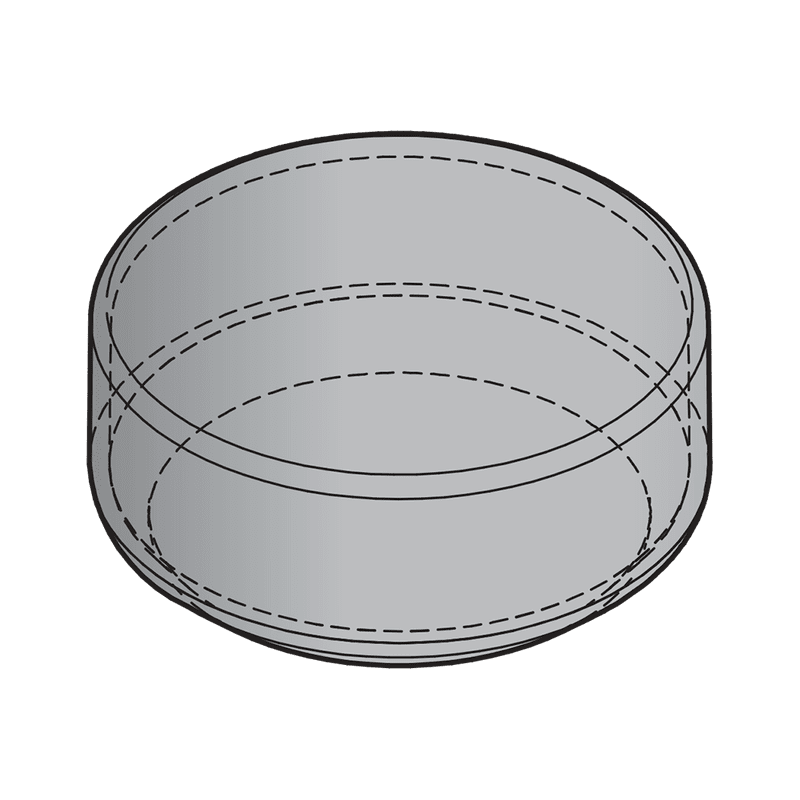

LAPP 6
| Protection cap
| • | ||
TLMR 201-1 | Cable plug M12 for TLMR 201 (cable diameter 4 - 6 mm) | • | ||
TLSD 1-BATC
| Lithium battery pack for TLSD 125/250
| • |
