OK Coupling mounting and dismounting kits
TMHK 35

Suitable for coupling size OKC 45-OKC 90
Contents
1 x 226400 E Injector with spares
1 x 226402 Adapter block
1 x 228027 E Nipple
1 x 227958A Pressure pipe (for OKC 80 and 90)
1 x 728017 A/2000 High pressure pipe (for OKC 45-75)
Tools and storage case
Weight 12 kg (26.5 lb)
Contents
1 x 226400 E Injector with spares
1 x 226402 Adapter block
1 x 228027 E Nipple
1 x 227958A Pressure pipe (for OKC 80 and 90)
1 x 728017 A/2000 High pressure pipe (for OKC 45-75)
Tools and storage case
Weight 12 kg (26.5 lb)

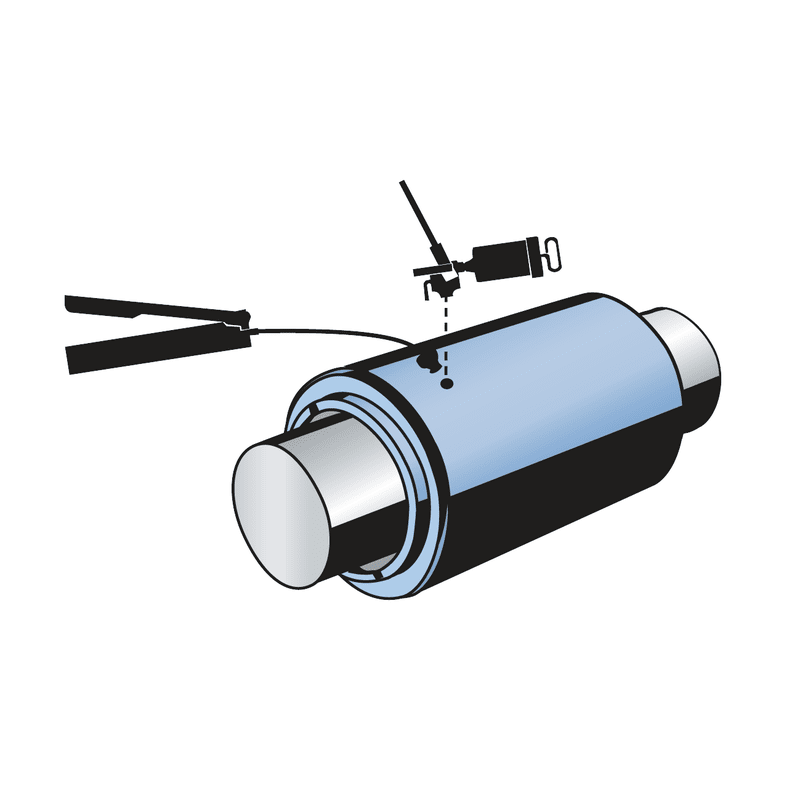

TMHK 36

TMHK 37


Suitable for coupling size OKC 180-OKC 250, OKF 100-OKF 300
Contents
2 x 226400 E Injector with spares
1 x 226402 * Adapter block
1 x 227957 A * High pressure pipe
1 x 228027 E * Connection nipple
1 x TMJL 50 Hydraulic pump
Tools and storage case
* = for use with OKF couplings
Weight 28,1 kg (61.8 lb)
Contents
2 x 226400 E Injector with spares
1 x 226402 * Adapter block
1 x 227957 A * High pressure pipe
1 x 228027 E * Connection nipple
1 x TMJL 50 Hydraulic pump
Tools and storage case
* = for use with OKF couplings
Weight 28,1 kg (61.8 lb)
TMHK 38


Suitable for coupling size OKC 180-OKC 490, OKF 300-OKF 700
Contents
1 x THAP 030E/SK1 Air-driven pump set
1 x 729147A Return hose
2 x 226400 E Injector with spares
Tools and storage case
Weight 36 kg (79.5 lb)
Note: Shipboard or infrequent use
Contents
1 x THAP 030E/SK1 Air-driven pump set
1 x 729147A Return hose
2 x 226400 E Injector with spares
Tools and storage case
Weight 36 kg (79.5 lb)
Note: Shipboard or infrequent use

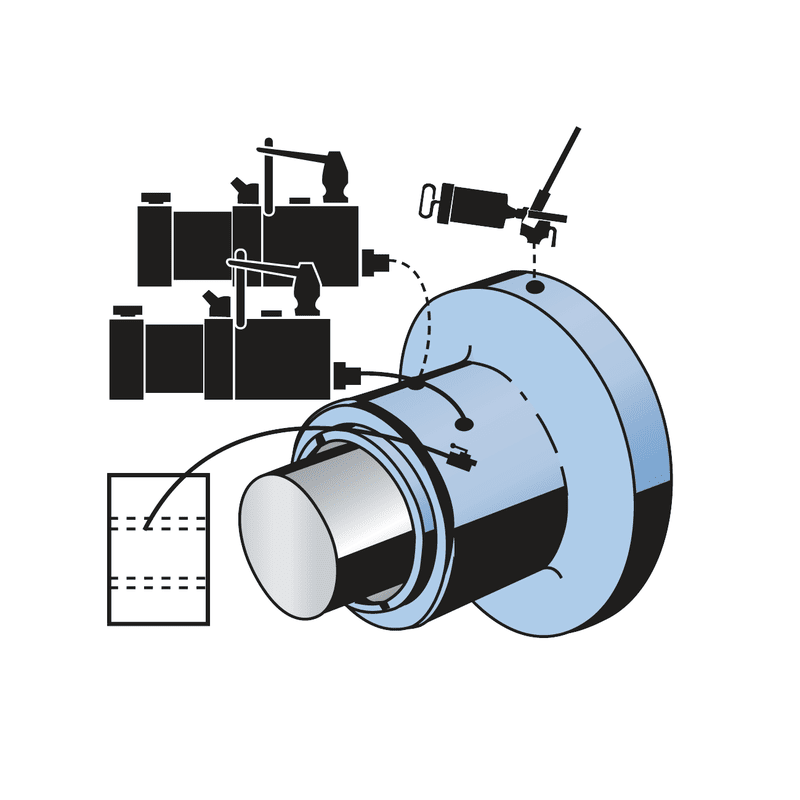

TMHK 38S


Suitable for coupling size OKC 180-OKC 490, OKF 300-OKF 700
Contents
1 x THAP 030E/SK1 Air-driven pump set
1 x 729147A Return hose
1 x THAP 300E Air-driven injector
1 x 226400 E Injector with spares
Weight 81,7 kg (180 lb)
Note: Shipyard or frequent use
Contents
1 x THAP 030E/SK1 Air-driven pump set
1 x 729147A Return hose
1 x THAP 300E Air-driven injector
1 x 226400 E Injector with spares
Weight 81,7 kg (180 lb)
Note: Shipyard or frequent use
TMHK 39

Suitable for coupling size OKC 500 - OKC 600
Contents
1 x THAP 030E/SK1 Air-driven pump set
1 x 729147A Return hose
3 x 226400 E Injector with spares
Weight 38,6 kg (85 lb)
Note: Shipboard or infrequent use
Contents
1 x THAP 030E/SK1 Air-driven pump set
1 x 729147A Return hose
3 x 226400 E Injector with spares
Weight 38,6 kg (85 lb)
Note: Shipboard or infrequent use

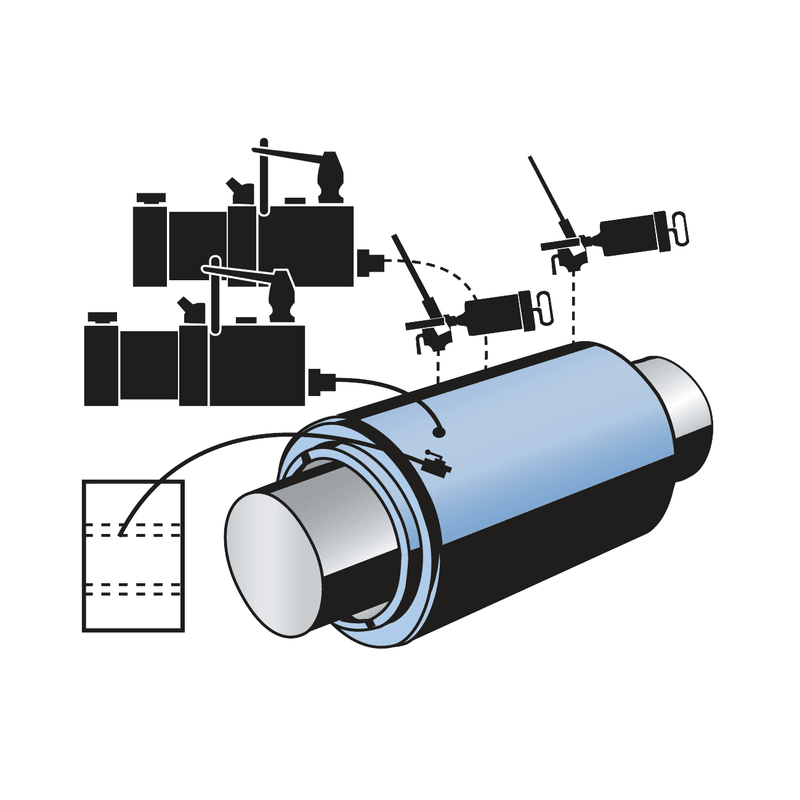

TMHK 40

Suitable for coupling size OKC 500 and larger
Contents
1 x THAP 030E/SK1 Air-driven pump set
1 x THAP 300E Air-driven injector
1 x 729147A Return hose
2 x 226400 E Injector with spares
Weight 84 kg (185 lb)
Note: Shipboard or infrequent use
Contents
1 x THAP 030E/SK1 Air-driven pump set
1 x THAP 300E Air-driven injector
1 x 729147A Return hose
2 x 226400 E Injector with spares
Weight 84 kg (185 lb)
Note: Shipboard or infrequent use

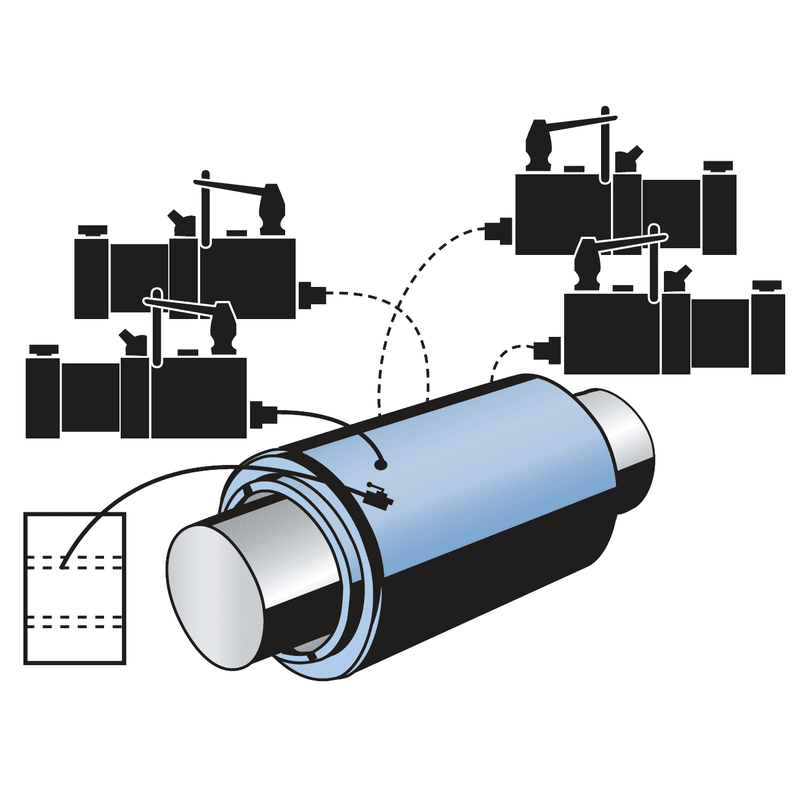

TMHK 41

Suitable for coupling size OKC 500 and larger
Contents
1 x THAP 030E/SK1 Air-driven pump set
3 x THAP 300E Air-driven injector
1 x 729147A Return hose
Weight 136 kg (300 lb)
Note: Shipyard or frequent use
Contents
1 x THAP 030E/SK1 Air-driven pump set
3 x THAP 300E Air-driven injector
1 x 729147A Return hose
Weight 136 kg (300 lb)
Note: Shipyard or frequent use
