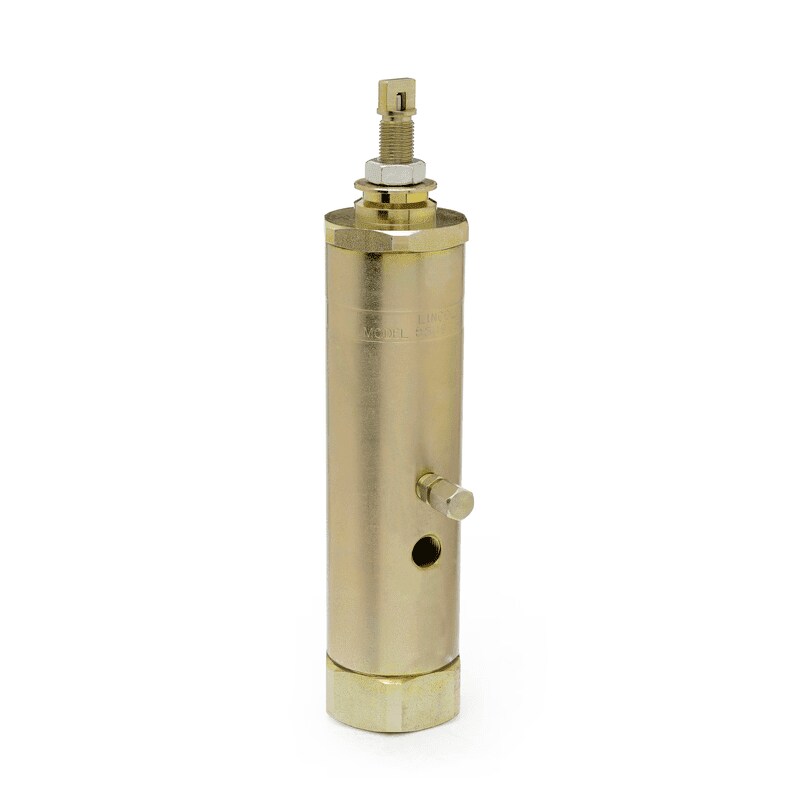

High-pressure metering devices for use in single-line lubrication systems
Series SL-11 metering devices are for single-line, high-pressure centralized lubrication systems dispensing lubricants compatible with flouroelastomer packing and viscosity up to NLGI 2. Output is externally adjustable. An indicator stem permits visual check of metering device operation. Available only as single unit with 1/2 inch NPTF (F) inlet.
Features and benefits:
Function principle metering device Outlets 1 Metering quantity, adjustable 0,82-8,2 cm³ 0.050-0.500 in³ Lubricant grease NLGI 0, 1, 2 Operating temperature -40 to +93 °C -40 to +200 °F Operating pressure 70-240 bar 1000-3500 psi Relief pressure 55 bar 800 psi Material carbon steel, FKM, PTFE Connection main line 1/2 NPTF (F) Connection outlet 1/4 NPTF (F) Lubricant point solderless pipe connection (DIN 3862) Dimensions ø73 × 241 mm ø2.87 × 9.48 in Mounting position any
