Technology and key benefits

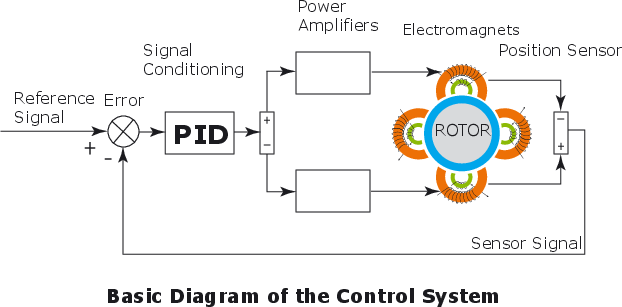

Basic diagram of magnetic bearing control system

Active magnetic bearings operate with no surface contact eliminating bearing friction and wear. Electromagnets generate forces in radial and axial directions to levitate the shaft, allowing it to rotate contact-free. A control system actively monitors and continuously adjusts the current in the electromagnets to maintain shaft position. Their extreme precision and stability makes them suitable for a much wider operating range than conventional bearings.

  • higher reliability and energy efficiency
  • virtually maintenance-free, reduced cost of operation
  • oil-free and contamination-free
  • high damping properties, withstand high transient loads
  • allow active control of the shaft unbalance
  • instantaneous and unlimited start/stop
  • operate in vacuum and in process gas, enabling sealed machines design
  • built in monitoring system

Magnetic bearings - Principles of operation
