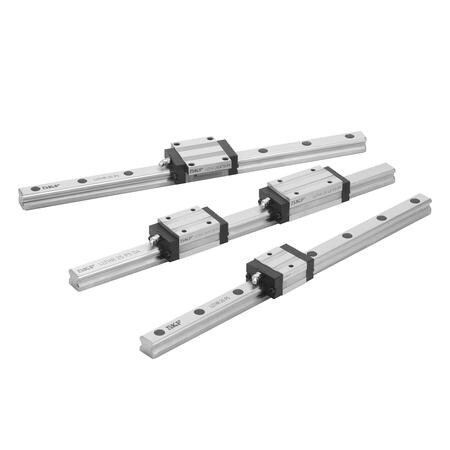

Profile rail guides

Profile rail guides

SKF profile rail guides provide precise, effortless linear positioning. Designed to handle high operational loads, these low-noise, low-friction units are easy to mount from bottom or top. Additionally, we offer customized coatings for optimized surfaces.

Technical features

  • Full range on carriages and rails
  • Standard and miniature range
  • Seals integrated as standard
  • Optimised ball recirculation
  • Mono-rail concept

Functional benefits

  • Standard product availability
  • Low friction for manual motion
  • Robust and compact design
  • Easy to clean surface enabled by underside fixing
  • Reduced stock plus ability to interchange
