Electro-mechanical single point automatic lubricant dispenser
Automatic lubricant dispenser TLMR series

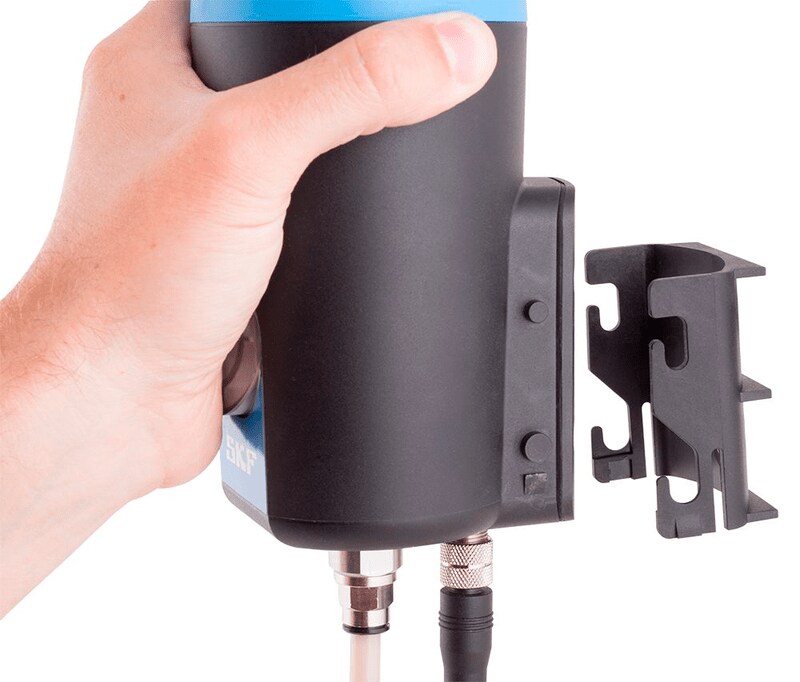

A special bracket makes TLMR easy to mount onto a surface
The cartridges are easily replaceable
The SKF Automatic Lubricant Dispenser is a single point automatic lubricator designed to supply grease to a single lubrication point. With a relatively high pressure of 30 bars, this lubricator can operate at long distances providing optimum results with difficult-to-reach and unsafe lubrication locations. With a wide temperature range and robust design, the TLMR lubricator is suitable for operating conditions with various levels of temperature and vibration.
Typical applications
SKF DialSet software helps to calculate the correct dispense rate.
The range of available grease cartridges for the SKF Automatic Lubricant Dispenser
- Filled with high quality SKF greases
- Temperature independent dispense rate
- Maximum discharge pressure of 30 bar over the whole dispensing period
- Dispense rate available in various settings
-
Available in two versions: TLMR 101 powered by batteries (standard Lithium AA type) and TLMR 201 powered by 12-24 volt DC
- Available with non-refillable cartridges in two sizes: 120ml and 380ml
- Easy to install and use
- High water and dust protection (IP=67)
- Extensive range of accessories
Typical applications
- Remote mounting for lubrication in hazardous and restrictive locations
- Applications requiring high lubricant consumption
- Applications experiencing high vibration in operation
- Excellent water and dust protection (IP=67) makes TLMR suitable for General machinery applications and Food processing machinery
- Excellent high temperature performance makes TLMR suitable for engine rooms and hot fan applications
- Excellent low temperature performance makes TLMR suitable for wind turbine applications
SKF DialSet software helps to calculate the correct dispense rate.
The range of available grease cartridges for the SKF Automatic Lubricant Dispenser
Ordering details
| Complete sets | ||
| Designation | TLMR 101/38WA2 | TLMR 201/38WA2 |
| Pump | TLMR 101 | TLMR 201 |
| Lubricant | LGWA 2 | LGWA 2 |
| Description | High load, extreme pressure, wide temperature range bearing grease | High load, extreme pressure, wide temperature range bearing grease |
| Product | Complete lubricator powered by batteries | Complete lubricator powered by 12-24V DC |
| TLMR 101 refill sets (cartridge and battery) | |||
| Lubricant | Description | Product | Designation |
| LGWA 2 | High load, extreme pressure, wide
temperature range bearing grease | Refill set 120 ml
Refill set 380 ml | LGWA 2/MR120B
LGWA 2/MR380B |
| LGEV 2 | Extremely high viscosity bearing grease with
solid lubricants |
Refill set 380 ml |
LGEV 2/MR380B |
| LGHB 2 | High load, high temperature, high
viscosity bearing grease |
Refill set 380 ml |
LGHB 2/MR380B |
| LGHP 2 | High performance,high temperature
bearing grease |
Refill set 380 ml |
LGHP 2/MR380B |
| LGFP 2 | Food compatible bearing grease
NSF H1 certified | Refill set 120 ml
Refill set 380 ml | LGFP 2/MR120B
LGFP 2/MR380B |
| LGWM 1 | Extreme pressure, low temperature
bearing grease | Refill set 380 ml | LGWM 1/MR380B |
| LGWM 2 | High load, wide temperature range
bearing grease | Refill set 380 ml |
LGWM 2/MR380B |
| LGEP 2 | Extreme pressure bearing grease | Refill set 380 ml | LGEP 2/MR380B |
| LGMT 3 | All purpose industrial and automotive grease | Refill set 380 ml | LGMT 3/MR380B |
| LGGB 2 | Biodegradable grease | Refill set 380 ml | LGGB 2/MR380B |
| TLMR 201 cartridges | |||
| Lubricant | Description | Product | Designation |
| LGWA 2 | High load, extreme pressure, wide
temperature range bearing grease | Cartridge 120 ml
Cartridge 380 ml | LGWA 2/MR120
LGWA 2/MR380 |
| LGEV 2 | Extremely high viscosity bearing grease with
solid lubricants |
Cartridge 380 ml |
LGEV 2/MR380 |
| LGHB 2 | High load, high temperature, high
viscosity bearing grease |
Cartridge 380 ml |
LGHB 2/MR380 |
| LGHP 2 | High performance,high temperature
bearing grease |
Cartridge 380 ml |
LGHP 2/MR380 |
| LGFP 2 | Food compatible bearing grease
NSF H1 certified | Cartridge 120 ml
Cartridge 380 ml | LGFP 2/MR120
LGFP 2/MR380 |
| LGWM 1 | Extreme pressure, low temperature
bearing grease | Cartridge 380 ml | LGWM 1/MR380 |
| LGWM 2 | High load, wide temperature range
bearing grease | Cartridge 380 ml | LGWM 2/MR380 |
| LGEP 2 | Extreme pressure bearing grease | Cartridge 380 ml | LGEP 2/MR380 |
| LGMT 3 | All purpose industrial and automotive grease | Cartridge 380 ml | LGMT 3/MR380 |
| LGGB 2 | Biodegradable grease | Cartridge 380 ml | LGGB 2/MR380 |
| TLMR Pump | |
| Designation | Description |
| TLMR 101 | Lubricator powered by batteries |
| TLMR 201 | Lubricator powered by 12-24V DC |
-
Technical data
Technical data Grease capacity 120 120 ml (4.1 fl. oz US) 380 380 ml (12.8 fl. oz US) Emptying time User adjustable: 1,2,3,6,9,12, 18, 24 months or purge Lowest setting 120 0,16 ml per day (0.005fl. oz US) 380 0,5 ml per day (0.016 fl. oz US) Highest setting 120 3,9 ml per day (0.13 fl. oz US) 380 12,5 ml per day (0.42 fl. oz US) Purge 31 ml per hour (1 fl. oz US) Ambient temperature range -25°C to 70 °C (-13 °F to 158 °F) Maximum operating pressure 30 bar (435 psi) Drive mechanism Electro mechanical Connection thread Female G 1/4 Maximum feed line length Up to 5 meters (16 ft) * LED status indicators OK (every 8 seconds green)
Almost empty (every 8 seconds green and red)
Error (every 8 seconds red)Protection class DIN EN 60529 IP67 Protection class DIN 40 050 Teil 9 IP 6k9k Battery TLMR 101 4 AA Lithium batteries Power TLMR 201 12-24 Volt DC Dimensions Coming from IFU Disposal Industrial waste EU code Canister 15 01 10 Battery pack 16 06 05 * The maximum feed line length is dependent on ambient temperature, grease type and back pressure created by the application. -
Accessories
-
Spare parts
Related documents
- Product data sheet TLMR Series (343 KB)
- Quick start guide TLMR series (175 KB)
- Instructions for use TLMR series (4.2 MB)
