Grease filler pumps

Optimum cleanliness when filling your grease guns

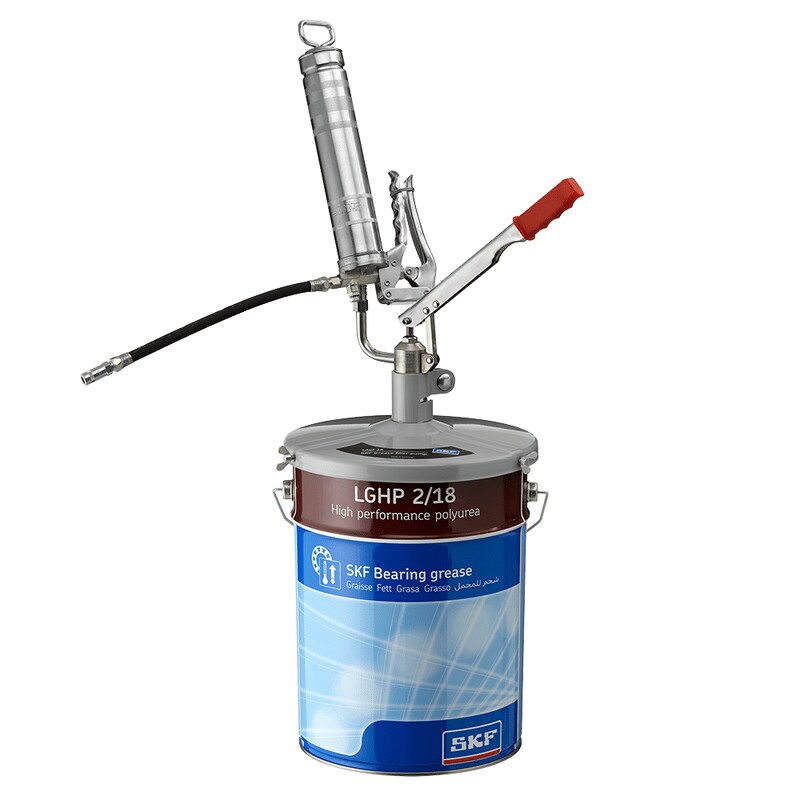

Grease filler pump LAGF 18

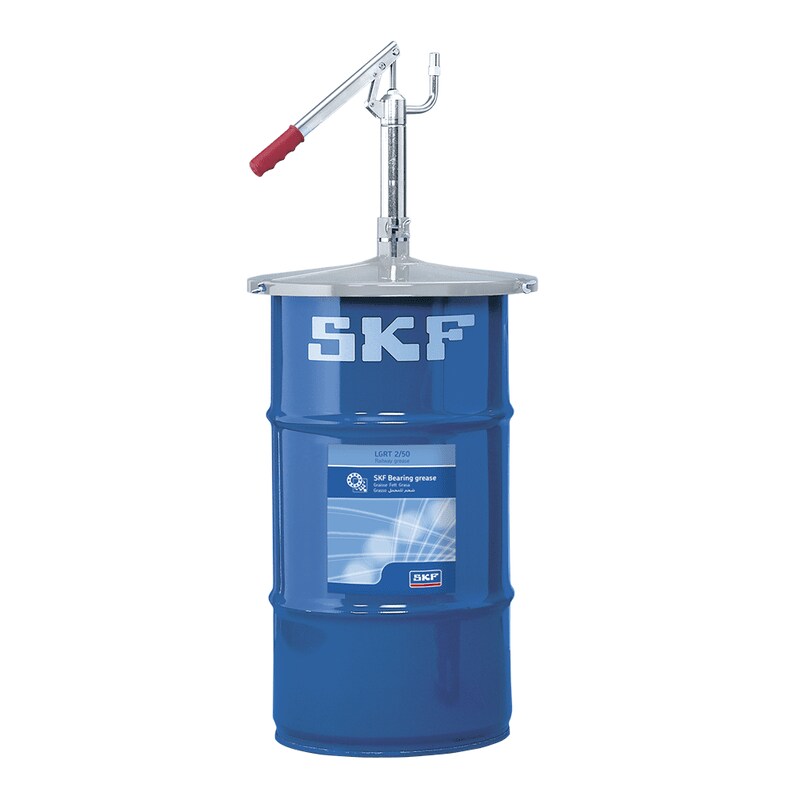

Grease filler pump LAGF 50
Best lubrication practices say that each type of grease requires an individual grease gun and the refilling has to be a clean process. SKF Grease Filler Pumps are designed to help achieve this goal.
  • Quick filling: low pressure high stroke volume
  • Easy installation: all necessary items are included
  • Reliable: tested and approved for all SKF greases
  • Appropriate as a complement for SKF Bearing Packer VKN 550

LAGF series product video

Technical data

Maximum pressure
30 bar (430 psi)
30 bar (430 psi)
approx. 45 cm³ (1.5 US fl. oz)
approx. 45 cm³ (1.5 US fl. oz)
Suitable drum dimensions

- inside diameter
265-285 mm (10.4-11.2 in.)
350-385 mm (13.8-15.2 in.)
- maximum inside height
420 mm (16.5 in.)
675 mm (26.6 in.)
5 kg (11 lb)
7 kg (15 lb)
Spare parts
LAGF 1-FSKF hose set LAGF 1-F, suitable for LAGF to fill reservoir of centralised lub sys, incl: combined filling adapter, hydraulic coupler and quick release connector ISO 7241 B DN6 R 1/4" and male double threaded nipple R/14"
LAGF 1-HFiller nipple DIN 1283 (Brass and Steel zinc plated)
LAGF 1-TBend pipe for LAGF Pump, thread R 1/4
LAGF 18-H2Hose set LAGF 1-F for manual filler pump - 2 m, filling adaptor, hydraulic coupler and release connector ISO 7241 B DN R 1/4 and double thread nipple R 1/4", male.
LAGT 18-50
Trolley for 18 kg (40 lb) and 50 kg (110 lb) drums
