GE 100 TXA-2LS

Lubricant  Maintenance free – dry lubrication
Design (sliding contact surface combination)  Steel/PTFE fabric
Sealing solution  Triple-lip seals

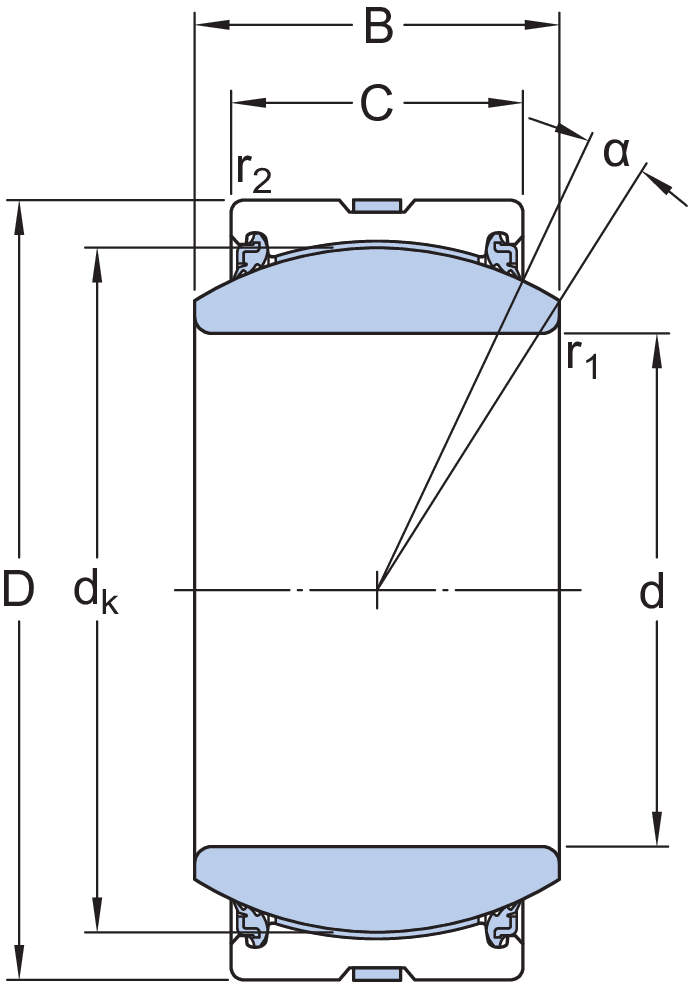

Dimensions
d 100mm
D 150mm
B 70mm
C 55mm
α 6°
dk 130mm
r1min.1mm
r2min.1mm
Abutment dimensions
damin.108mm
damax.109.5mm
Damin.131mm
Damax.144mm
ramax.1mm
rbmax.1mm
Calculation data
Basic dynamic load ratingC 1730kN
Basic static load ratingC0 2850kN
Specific dynamic load factorK 300N/mm²
Specific static load factorK0 500N/mm²
Mass
Mass plain bearing  4.3kg

For additional information about the meaning and limitations of the product data, refer to Radial spherical plain bearings and Principles for selection and application.
