C 3224 K
Popular item
SKF Explorer
Dimensions
| d | 120 | mm | |
| D | 215 | mm | |
| B | 76 | mm | |
| d2 | ≈ | 149 | mm |
| D1 | ≈ | 190 | mm |
| s1 | max. | 17.1 | mm |
| r1,2 | min. | 2.1 | mm |
Tapered bore, taper 1:12

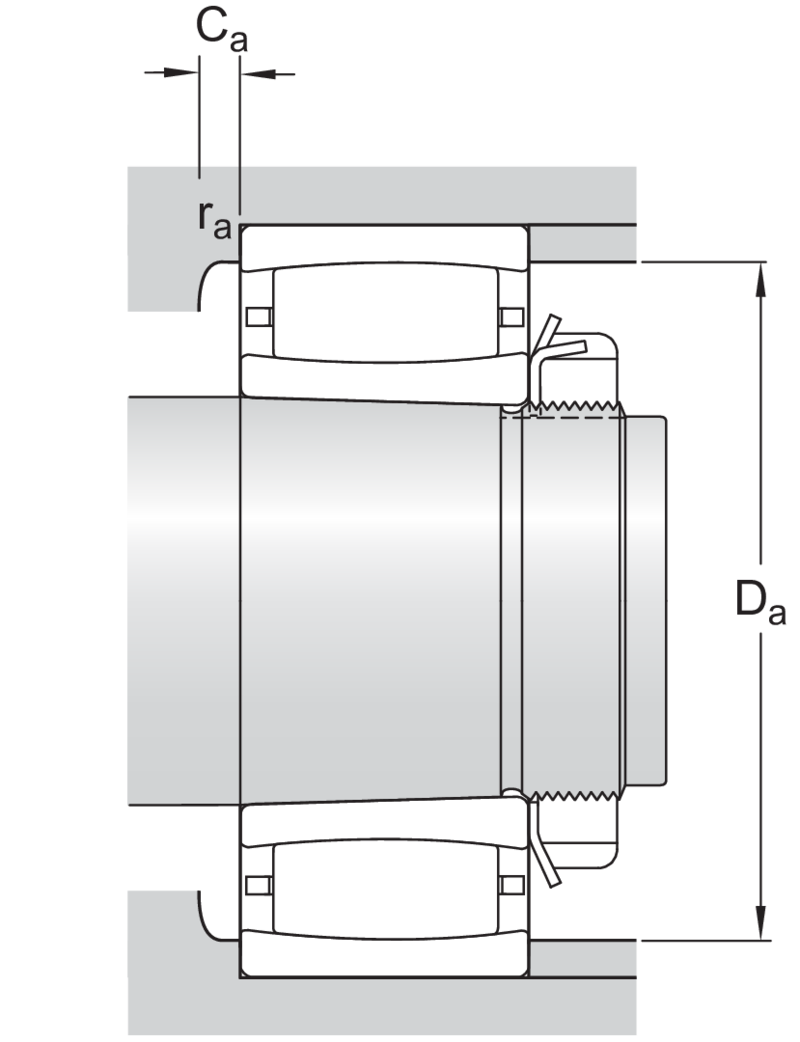

Abutment dimensions
| Da | min. | 179 | mm |
| Da | max. | 203 | mm |
| Ca | min. | 2.4 | mm |
| ra | max. | 2 | mm |
- A negative value for Ca is theoretical.
Calculation data
| Basic dynamic load rating | C | 750 | kN | |
| Basic static load rating | C0 | 980 | kN | |
| Fatigue load limit | Pu | 98 | kN | |
| Reference speed | 2400 | r/min | ||
| Limiting speed | 3200 | r/min | ||
| Misalignment factor | k1 | 0.103 | ||
| Operating clearance factor | k2 | 0.108 |
Mass
| Mass bearing | 11.5 | kg |
