Microdosage System MDS
.jpg "MDU Microdosage control unit")

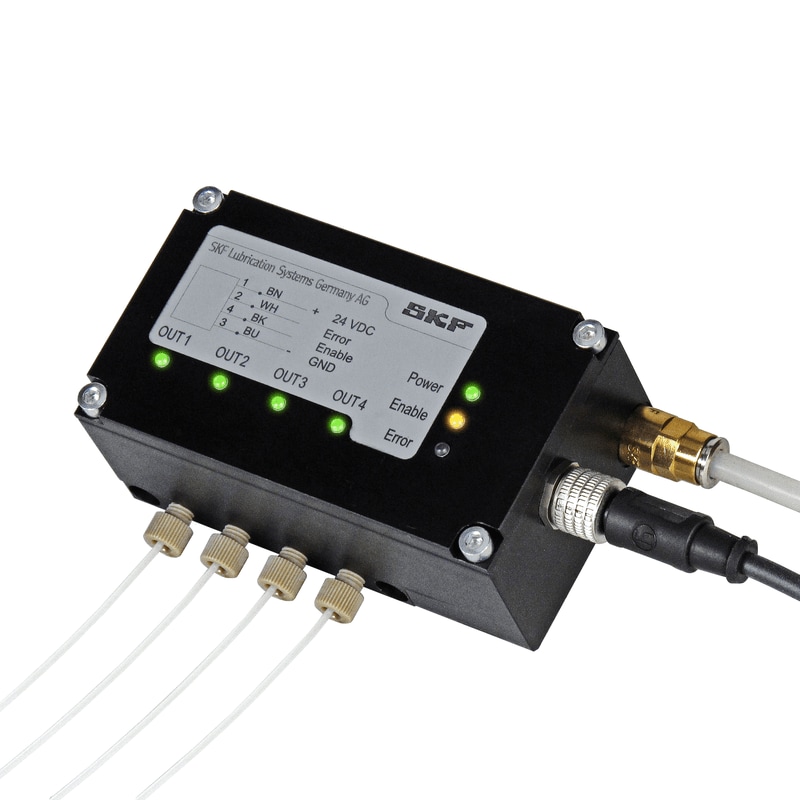

MDU Microdosage control unit
MDR Microdosage reservoir
For continuous monitored lubrication with minimum quantities of oil.
The system comes with a metering unit (MDU) and a separate lubricant reservoir (MDR).
Technical features:
Metering unit:
Special features:
The system comes with a metering unit (MDU) and a separate lubricant reservoir (MDR).
Technical features:
Metering unit:
- Lubricant: oil
- Operating viscosity: 2 – 500 mm²/s
- Number of lubricant outlets: 4, individually adjustable
- Volumetric oil flow per outlet: 0,5 – 5 mm³/min
- Control unit operating voltage: 24 VDC
- Working temperature: 10 to 50 °C
Lubricant reservoir:
- Reservoir capacity: 1 l
- Fill level monitoring in reservoir: 24 V DC
-
Priming pressure generation: 4-8 bar (compressed air)
-
Pressure in reservoir: 4 bar
Special features:
-
Precise:
– Continuous lubrication without consuming air
– Precise metering of minimal quantities of oil -
Reliable:
– Continuous monitoring and adjustment of the metered quantity
– Self-calibrating
– Lubricant feeding directly to the lubrication points -
Environmentally compatible:
– No compressed air consumption
– Reduced noise emissions
– Minimal lubricant quantities -
CE mark of conformity
Related documents
- Product brochure: 1-5020-EN (1019 KB)
- Assembly instructions: 951-170-217 EN (3.3 MB)
