90X110X10 HMS5 RG

Type of outside diameter  Rubber metal reinforced
Lip material  Nitrile rubber (NBR)
Seal design  HMS5

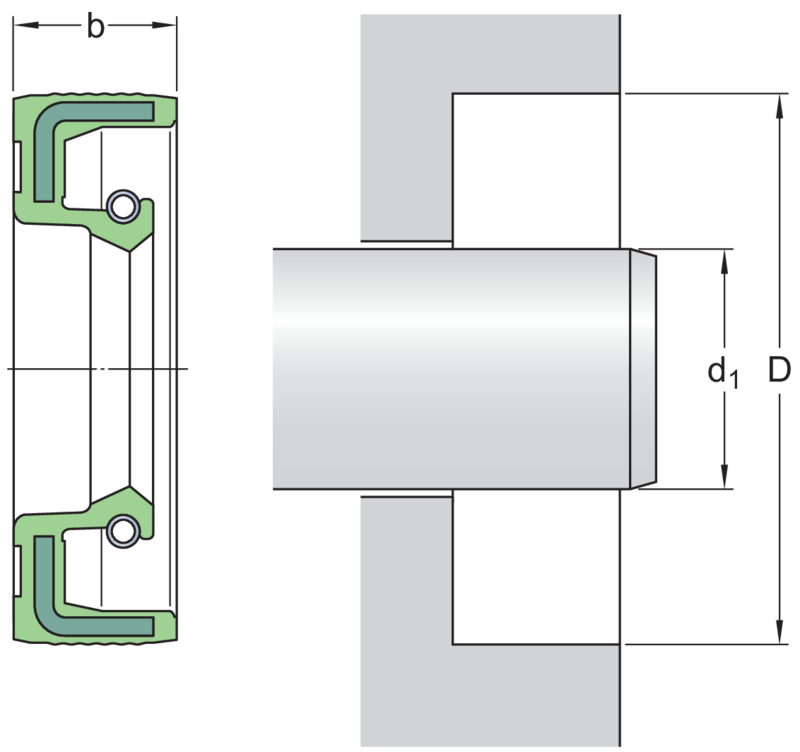

Dimensions
d1 90mm
D 110mm
b 10mm
Application and operating conditions
Operating temperature min.-40°C
Operating temperature max.100°C
Permissible operating temperature, short periods max.120°C
Shaft speed max.2160r/min
Shaft surface speed max.10.22m/s

For additional information about the meaning and limitations of the product data, refer to Radial shaft seals and Principles of sealing selection and application.
