Deep groove ball bearings

Tolerances: Normal (metric), P6, P5, Normal (inch)
Radial internal clearance: Matched bearing pairs, Stainless steel d < 10 mm, Other bearings
Seat tolerances for standard conditions
Tolerances and resultant fits

Calculation

Start Bearing Calculator for this product

View 3D model

Please select the desired components to be included in the CAD model.

More

Please select the desired components to be included in the CAD model.

PrintExport as PDF

61908-2RZ

Popular item

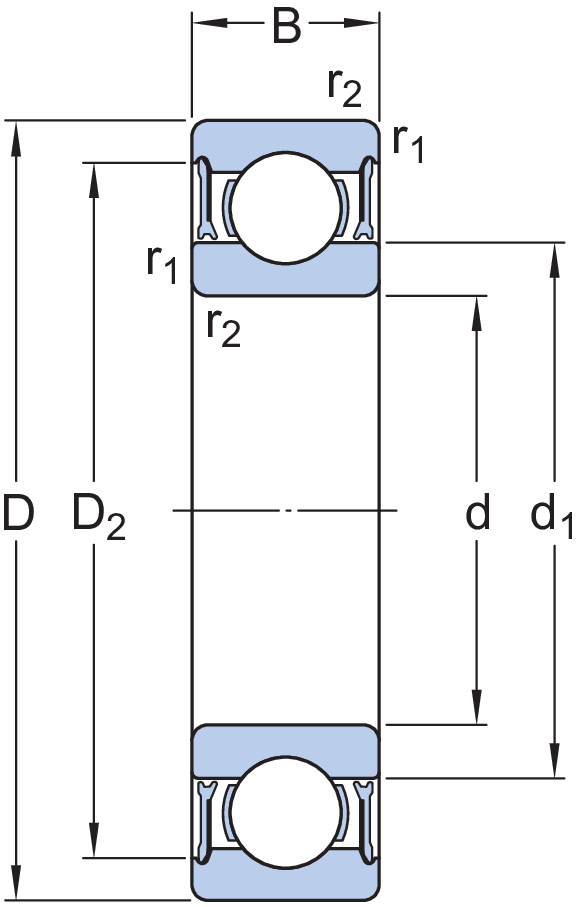

Dimensions
d 40mm
D 62mm
B 12mm
d146.9mm
D257.55mm
r1,2min.0.6mm

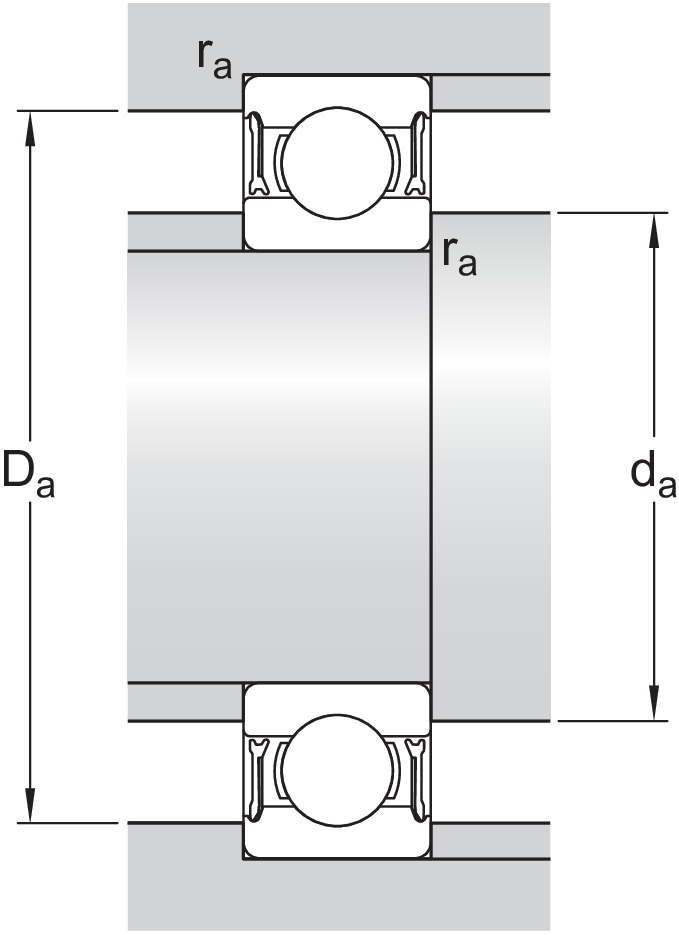

Abutment dimensions
damin.43.2mm
damax.46.8mm
Damax.58.8mm
ramax.0.6mm
Calculation data
Basic dynamic load ratingC 13.8kN
Basic static load ratingC0 10kN
Fatigue load limitPu 0.425kN
Reference speed  24000r/min
Limiting speed  12000r/min
Calculation factorkr 0.02
Calculation factorf0 15.6
Mass
Mass bearing  0.12kg
